Topdisplay Dodge RAM 2013-2018 Radio Upgrade

14.5-inch QLED  8-Core CPU  Touch Screen Stereo  Wireless CarPlay & Android Auto

——————————————————————————————————————————————————



Part 1:Why Upgrade?

The stock radio in the 2013–2018 Dodge RAM is fine... until you use a modern smartphone. The factory screen is small, the interface feels dated, and there's no CarPlay, no Android Auto, no touch responsiveness you'd expect today. It works, but it doesn't keep up.

Swapping in a 14.5-inch QLED screen changes everything. Suddenly you've got wireless CarPlay, a giant responsive touchscreen, modern navigation, and an interface that makes the truck feel like it rolled off the lot this year. Same truck, completely different vibe.



Factory Stock Radio

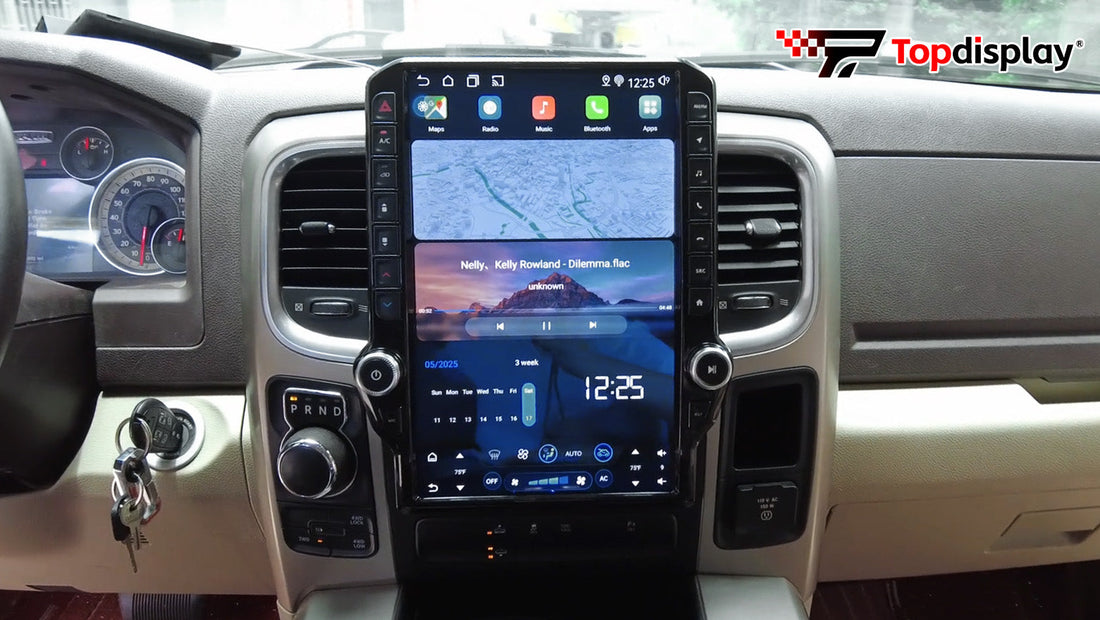

Topdisplay 14.5" Upgrade Installed

Part 2: Installation Steps

Here's how it actually goes down — no filler, no unboxing montage, just the real steps from the moment you pick up a screwdriver.

Step 1 — Remove the Cup Holder Screws

Grab a screwdriver and pull out the rubber mat inside the cup holders. Underneath you'll find three Phillips screws. Take them all out. These hold the bottom of the center console trim in place.

Step 2 — Remove the Top Cubby Screws

Look up above the radio — there's a small storage cubby. Inside it are two screws that secure the top of the dash bezel. Remove them both.

Step 3 — Detach the Center Console Bezel

With all screws out, the entire center trim piece comes off. Start from the bottom and work your way up. It's held by clips, so a firm but careful pull is all it takes. Don't yank — work it loose gently and watch for any remaining wire connections behind it.

Step 4 — Unplug the Wiring Behind the Dash

Once the bezel is free, you'll see a handful of connectors — climate control harnesses , radio antenna, and main wiring.

Step 5 — Pull Out the Factory Radio

With the bezel off and connectors unplugged, the old radio slides right out. It's held by a few bolts on the sides — remove those and the whole unit comes forward.

Step 6 — Transfer the Factory Trim Frame

Here's a step people miss: you need to take the original plastic trim frame off the factory dash panel and attach it to the new Topdisplay frame. The video shows prying the old frame free, then snapping it onto the new assembly. This ensures the new screen sits flush with the dashboard like it belongs there.

Step 7 — Prep the New Wiring Harness

The Topdisplay kit comes with a full plug-and-play harness. No cutting, no splicing. Match the connectors from the new harness to the factory plugs you disconnected earlier. Everything is color-coded and keyed so it only goes in one way.

Step 8 — Reconnect Climate Controls and Factory Buttons

Before you put everything back together, plug the factory climate control knobs and any physical buttons back into their slots on the new frame. These integrate with the Topdisplay unit so your HVAC still works through the original controls.

Step 9 — Power-On Test BEFORE Final Assembly

This is the most important step and the one you absolutely should not skip. Before screwing everything back together, turn on the ignition and test the screen. Make sure it powers up, the touchscreen responds, CarPlay connects, climate controls work, and there's no weirdness. It's 10 minutes of testing that can save you an hour of re-disassembly.

Step 10 — Reassemble the Center Console

Everything tested and working? Great. Now put the center console back together in reverse order: snap the trim pieces back in, reinstall the cup holder assembly, and tighten all screws. Double-check that all panels sit flush and nothing is loose.

Part 3: Before & After Showcase



Screen Size:  5" or 8.4" factory display  →  14.5" QLED touchscreen

Interface:  Factory Uconnect (dated)  →  Modern UI + Wireless CarPlay & Android Auto

Navigation:  Factory nav (optional/outdated)  →  Apple Maps / Google Maps / Waze via phone

Audio:  Stock amplifier  →  Retained factory amp + enhanced EQ via new unit

Climate Control:  Physical buttons only  →  Physical buttons retained + on-screen controls

Overall Feel:  2013 technology  →  Feels like a 2026 truck

Part 4: Summary

Install Time: About 1.5 to 2.5 hours for a first-timer. If you've done dash work before, closer to an hour.

Difficulty: Intermediate. No fabrication or wire splicing needed. If you can swap a car stereo, you can handle this.

Who's this for: Any 2013–2018 Dodge RAM owner who wants CarPlay/Android Auto, a bigger screen, and a modern cockpit without buying a new truck.



Quick Answers

Q: Will this damage my truck?

A: No. The kit is designed to be plug-and-play. No cutting, drilling, or permanent modification. You can revert to the factory radio if needed.

Q: Do I need professional tools?

A: Just basic hand tools — a screwdriver and a plastic trim pry tool. Everything else comes in the box.

Q: Is it hard to install?

A: Honestly, the hardest part is being patient with the trim clips. The wiring is plug-and-play. If you follow the steps and don't skip the power-on test, you'll be fine.

Q: Do I keep my factory features?

A: Yes. Steering wheel controls, backup camera, climate control, and factory amplifier all work with the new unit. The Topdisplay system integrates with the factory CAN bus.

Q: What about software updates?

A: The unit runs a modern OS with OTA update support. CarPlay and Android Auto work wirelessly out of the box.d
