Cadillac Escalade 2007-2014
10.4-Inch Radio Upgrade Installation Guide

Topdisplay 10.4" QLED 8-Core Touch Screen Stereo
Wireless CarPlay & Android Auto | Keep OEM Controls

Product Overview

This guide walks you through installing the Topdisplay 10.4-inch QLED vertical screen upgrade on the Cadillac Escalade (2007–2014). The unit features an 8-core CPU, wireless Apple CarPlay and Android Auto, and retains all original steering wheel and OEM controls.

Product	Topdisplay Cadillac Escalade 2007-2014 Radio Upgrade
Screen	10.4-inch QLED Vertical Touch Screen
Processor	8-Core CPU
Connectivity	Wireless CarPlay & Android Auto
OEM Compatibility	Full Steering Wheel & Factory Control Retention
Installation	Plug & Play Wiring Harness (No wire cutting)

Tools You'll Need

• Plastic trim pry tools (included with the unit)
• Power drill with Phillips screwdriver bit
• Small flathead screwdriver (optional, for stubborn clips)
• Soft cloth or towel (to protect trim during removal)
• 10–15 minutes of your time

Installation Steps

Step 1: Remove the Upper Dashboard Trim

Start by prying off the silver upper dashboard trim piece above the center vents. Use two plastic pry tools and work gently from the edges — the clips release with moderate pressure. This exposes the top section of the dash, giving you access to the screen surround panel.

Step 2: Remove the Lower Center Console Trim

Next, unclip the lower wood-grain trim panel that covers the cupholders and power outlet area near the gear shifter. Insert the pry tool along the edges and lift carefully. Disconnect any electrical connectors underneath (such as the cigarette lighter harness), then set the panel aside.

Step 3: Remove the Screen Surround Panel

Grip the wood-grain panel that surrounds the factory infotainment screen and pull it straight toward you. The entire surround unclips as one piece. There are no screws here — just friction clips — so a firm, even pull is all you need.

Step 4: Disconnect and Remove the Factory Radio Unit

With the surround off, you'll see the factory navigation screen held by four screws at the corners. Disconnect the electrical connector from the back of the screen first, then use a power drill to remove all four mounting screws. Pull the entire radio and screen assembly out of the dash cavity, then disconnect the main multi-pin harness from the rear of the unit. The factory unit is now fully removed.

Step 5: Connect the Wiring Harness to the New Unit

Take the included plug-and-play wiring harness and connect it to the back of the new 10.4-inch Topdisplay unit. Match all connectors: power, speaker, antenna, GPS, USB, and the yellow RCA cable for the backup camera. The harness is designed to fit the Escalade's factory connectors without any wire cutting. Tip: If the backup camera doesn't display immediately, try a different yellow RCA input on the harness.

Step 6: Install and Secure the New Screen

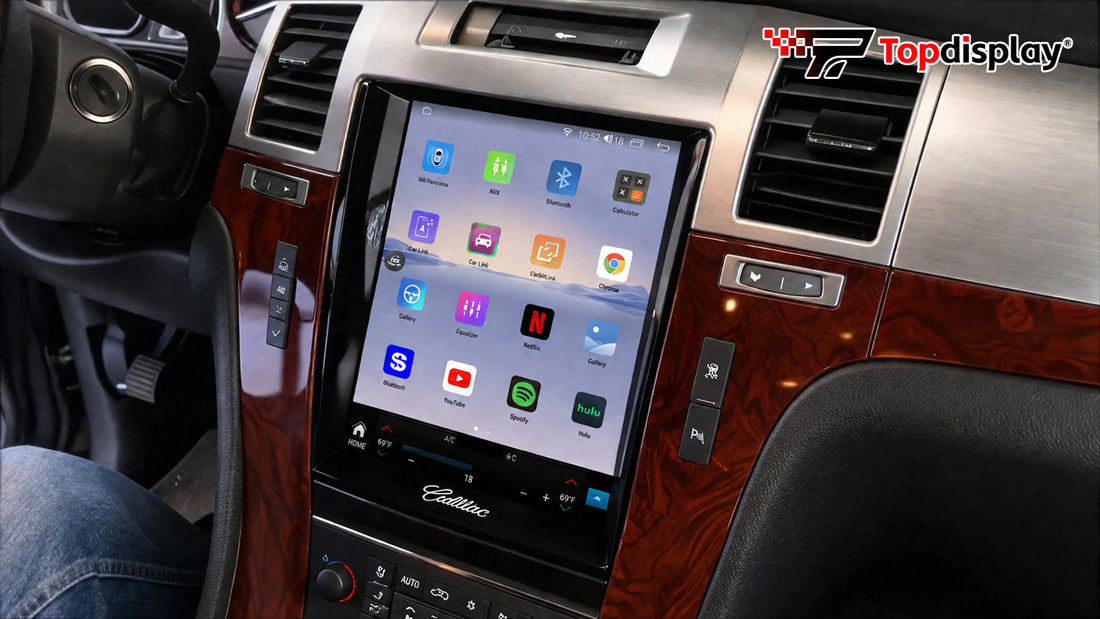

Carefully feed the wiring bundle into the dash cavity and slide the new screen into position. The Topdisplay unit uses the same mounting points as the factory radio. Once seated flush, use the power drill to secure the mounting screws on the sides of the new unit. Power on the ignition briefly to confirm the screen boots and displays the Cadillac logo before proceeding.

Step 7: Reinstall All Trim Pieces

Now work in reverse: snap the screen surround panel back into place first, then reattach the lower center console wood-grain trim (reconnecting any electrical connectors you unplugged earlier), and finally clip the upper silver dashboard trim back on. Make sure every panel sits flush. No leftover clips or gaps — everything should fit just like factory.

Step 8: Final Testing and Setup

Start the vehicle and verify everything works: touchscreen responsiveness, wireless CarPlay / Android Auto pairing, steering wheel controls (volume, track skip, voice assistant), factory backup camera feed, climate control display, and audio output from all speakers. Navigate through the Android-based interface to confirm the 8-core CPU delivers smooth performance across all apps.

Frequently Asked Questions

Q: Will this damage my original car?

A: No. The entire installation is reversible. All factory trim panels unclip without modification, and the wiring harness is plug-and-play — no wire cutting, splicing, or permanent changes to your Escalade.

Q: Do I need professional tools?

A: No special tools required beyond what's included. The kit comes with plastic pry tools. The only extra tool you'll want is a basic power drill with a Phillips bit, which most DIYers already own.

Q: How difficult is the installation?

A: Easy to moderate. If you've ever swapped a car stereo or assembled IKEA furniture, you'll handle this fine. The entire process takes about 30–45 minutes for a first-timer, less if you're experienced.

Q: Does it keep all original factory functions?

A: Yes. Steering wheel controls, factory amplifier, backup camera, climate control integration, and all OEM buttons remain fully functional. The unit is specifically designed for the 2007–2014 Escalade platform.

Q: What if something doesn't work after installation?

A: Double-check all wiring connections first — especially the backup camera RCA jack. The unit has a dedicated CAN bus decoder that auto-detects vehicle settings. If a feature is not responding, reseat the main harness and reboot the unit.

Installation Summary

Total Time: 30–45 minutes for first-time installers; experienced DIYers can complete it in under 25 minutes.

Difficulty Level: Easy to Moderate — no mechanical expertise needed.

Who Is This For: Any Cadillac Escalade (2007–2014) owner who wants modern CarPlay/Android Auto, a larger touchscreen, and faster performance without losing factory functionality. Perfect for daily drivers who rely on navigation, music streaming, and hands-free calling.

Real-World Experience After Upgrade: The 10.4-inch QLED screen is a night-and-day difference from the aging factory display. Wireless CarPlay connects automatically within seconds of starting the car. The 8-core processor handles multitasking — maps + music + backup camera — without lag. Touch response is crisp and the vertical layout makes navigation maps far more usable. Most importantly, the cabin retains its original luxury feel: all wood-grain trim, factory buttons, and steering wheel controls work exactly as before, just with a vastly better screen at the center.
