Topdisplay Chevrolet Chevy Equinox 1LT 2LT LTZ 2010-2015 Radio Upgrade

Why I Upgraded

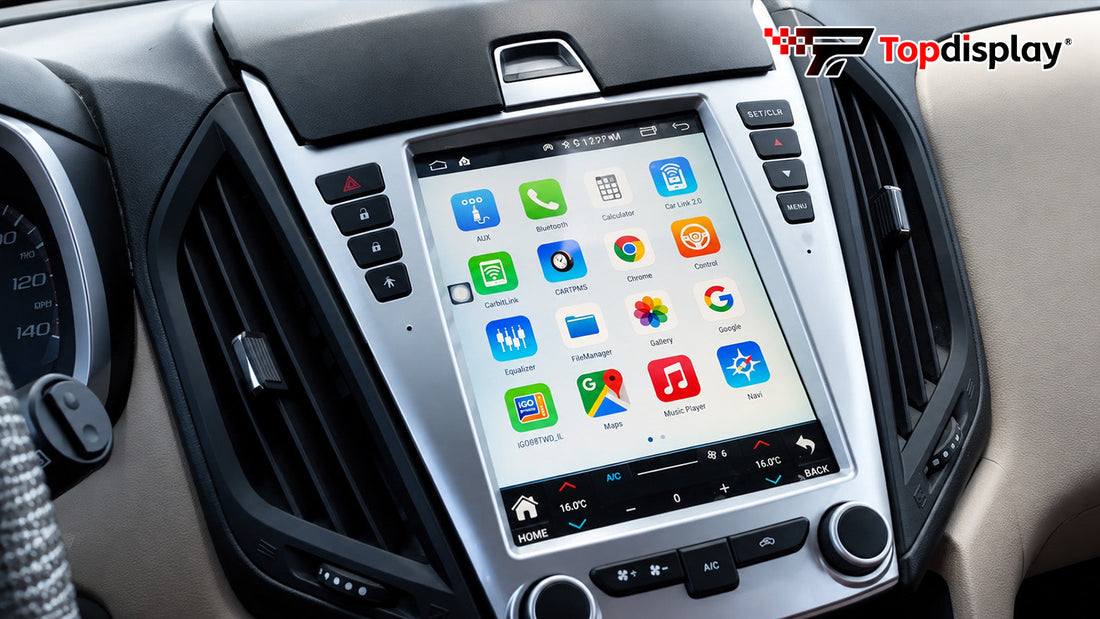

After years with the factory radio, I finally swapped it out for the Topdisplay unit — a 9.7-inch QLED screen with an 8-core CPU, Wireless CarPlay & Android Auto, all while keeping the OEM steering wheel controls and factory settings intact. The whole job took me about 45–60 minutes, and honestly, it was way easier than I expected.

What You'll Need

Tools:

• Plastic trim removal tool
• Screwdriver
• Socket wrench

Before You Start:

• Disconnect the negative battery terminal. Seriously — don't skip this.
• Work in a well-lit area with the car parked on level ground.
• Keep all screws and clips in a small tray so nothing gets lost.

Installation Steps

Step 1: Unbox and Inspect

Take everything out of the box and lay it out. Make sure you have the main head unit, the wiring harness, and all the brackets. The 9.7-inch QLED display looks even better in person — glossy, bright, and the build quality feels solid.

Step 2: Pop Off the Factory Radio Trim

Grab a plastic trim tool and gently pry around the edges of the factory radio bezel. Start from the bottom corners and work your way around. It's held in by clips, so you'll hear them pop loose. Take your time — no need to force anything.

Step 3: Remove the Mounting Bracket

With the trim panel off, you'll see the metal bracket holding the old radio. Pull it forward to expose the screws hidden underneath. This gives you access to everything you need to remove next.

Step 4: Unscrew the Lower Dash Panel

There are several screws around the gear shifter area holding the lower trim in place. Use a screwdriver to remove them all. They're all standard fasteners — nothing tricky.

Step 5: Lift Off the Lower Trim

Once all the screws are out, carefully lift away the entire lower plastic trim piece. This fully exposes the mounting cavity. You should now see the factory wiring harness and plenty of room to work.

Step 6: Connect and Mount the New Unit

Plug the wiring harness into the back of the new Topdisplay head unit, then carefully slide the main chassis into the dash cavity. It fits snugly into the factory mounting points. Secure it with the screws you removed earlier.

Step 7: Power On and Test

Reconnect the battery, fire it up, and test everything. Wireless CarPlay connects within seconds. Check the touch response, steering wheel controls, backup camera (if you have one), and climate controls. Everything should work right out of the box.

Installation Summary

Total Time: 1 hour 15 minutes (your mileage may vary)

Difficulty: Beginner-friendly (2/5). No special skills needed — just patience and a trim tool.

Who Should Do This:

• Anyone with a 2010–2015 Chevy Equinox who wants Wireless CarPlay / Android Auto without paying dealer prices.
• DIY beginners — this is a great first project since nothing requires cutting or soldering.

After the Upgrade:

The difference is night and day. The 9.7-inch QLED is crisp and responsive, Wireless CarPlay connects automatically when I get in, and the 8-core CPU keeps everything running smooth — no lag when switching between nav and music. Best part: all my original steering wheel buttons, climate controls, and vehicle settings still work exactly like before. It genuinely feels like a 2025 car now.

FAQ

Q: Will this void my warranty or damage the car?

A: Nope. It's fully plug-and-play with the factory harness. No wires are cut, no permanent modifications needed. You can swap the original radio back in anytime.

Q: Do I need any special or professional tools?

A: Not at all. A basic plastic trim tool and a screwdriver are all you need. Everything else comes in the box.

Q: Is it really that easy?

A: Honestly, yes. The hardest part is popping the trim panels without scratching anything. After that, it's just unscrewing, unplugging, and plugging back in.

Q: Do I keep my OEM features?

A: Yes — steering wheel controls, factory climate settings, vehicle info, and backup camera (if equipped) all work. Topdisplay designed this specifically to retain OEM controls.

Q: What if I get stuck?

A: Topdisplay includes an install video and support contact. Plus, there are dozens of forum threads and YouTube walkthroughs for the Equinox dash disassembly.

Safety & Important Notes

• Always disconnect the negative battery terminal before starting any electrical work.
• Use plastic (not metal) trim tools to avoid scratching or cracking dashboard panels.
• Never force a connector — if it doesn't fit, double-check the orientation.
• Keep screws organized by step so reassembly is quick and nothing gets lost.
• If anything feels stuck, stop and recheck. Rushing leads to broken clips.
• This guide is based on my personal install experience — your vehicle may have slight variations.
