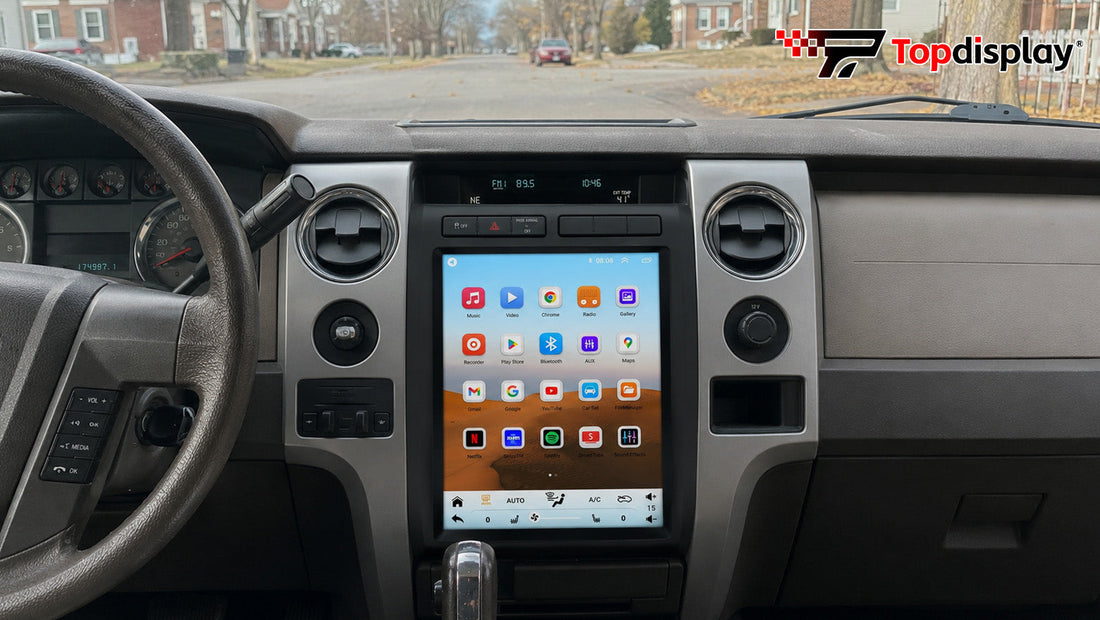

Topdisplay 12.1" QLED Touch Screen Stereo Installation Guide

Ford F-150 (2009-2012) — 8-Core CPU | Wireless CarPlay & Android Auto | Manual AC



This guide demonstrates the installation process using a Ford F-150 (2009-2012) as the reference vehicle. The steps apply to this model configuration.



1. Product Introduction

The Topdisplay 12.1-inch QLED Touch Screen Stereo is a premium infotainment upgrade designed specifically for the Ford F-150 (2009-2012). Powered by an 8-core CPU and featuring a stunning 12.1-inch QLED vertical display, it delivers vivid colors, sharp contrast, and a smooth responsive interface. With built-in Wireless Apple CarPlay and Android Auto, you can access navigation, music, calls, and messages without ever connecting a cable. This unit is designed for vehicles equipped with manual air conditioning (Manual AC Only) and integrates seamlessly with your truck's factory systems, retaining steering wheel controls and backup camera functionality.



2. Feature Overview

•       12.1-inch QLED vertical display with vibrant color reproduction and wide viewing angles

•       8-core CPU for fast boot-up, fluid multitouch response, and lag-free navigation

•       Wireless Apple CarPlay & Android Auto — connect your phone instantly, no cables required

•       Designed for Ford F-150 (2009-2012) with Manual AC Only compatibility

•       Plug-and-play wiring harness — retains factory steering wheel controls and backup camera

•       OEM-fit dashboard integration with custom-molded trim panels for a seamless factory look

•       Support for split-screen multitasking, Bluetooth audio streaming, and Wi-Fi connectivity



3. Installation Steps

Follow the steps below to install the Topdisplay 12.1-inch QLED Touch Screen Stereo. Each step is illustrated with a screenshot from the actual installation on a Ford F-150 (2009-2012).



Step 1 — Remove Factory Radio & Climate Panel

Use trim removal tools to carefully pry off the dashboard bezel surrounding the factory radio and climate control panel. Disconnect all factory connectors behind the panel and set the original unit aside.



Step 2 — Connect the New Wiring Harness

Connect the Topdisplay plug-and-play wiring harness to the vehicle's factory connectors. The harness is designed for seamless integration — no wire cutting or splicing required. Match each connector by shape and color coding.



Step 3 — Route & Secure All Cables

Route all cables through the dashboard cavity, keeping them away from sharp edges and moving parts. Use zip ties to bundle excess cable length and tuck everything neatly behind the screen mounting area.

Step 4 — Power On & Test CarPlay / Android Auto

Turn on the vehicle ignition and verify the 12.1-inch QLED screen powers up correctly. Test all core functions: Wireless Apple CarPlay and Android Auto connectivity, touch responsiveness, factory climate controls, steering wheel controls, and backup camera integration.

Step 5 — Mount the 12.1-inch QLED Display

Carefully lift the Topdisplay 12.1-inch QLED vertical touchscreen into position and secure it onto the sub-frame bracket. Ensure all connectors are firmly seated before tightening the mounting screws.



Step 6 — Install Dashboard Trim Pieces

Reattach the silver dashboard trim pieces on both sides of the screen. The Topdisplay kit includes custom-molded trim panels that match the original dashboard contours for a seamless OEM+ appearance.



Step 7 — Complete Final Assembly & Vent Cover

Snap the dashboard vent cover back into place above the screen. Perform a final inspection of all trim alignment, screen positioning, and system functionality. Your Ford F-150 is now upgraded with the Topdisplay 12.1-inch QLED Touch Screen Stereo, featuring the 8-core CPU, Wireless CarPlay, and Android Auto.

（The content is for reference only.）
