Topdisplay BMW X3 2004-2010 Radio Upgrade,Wireless CarPlay & Android Auto,Keep OEM Controls
BMW X3 2004-2010 Radio Upgrade
QLED 8-Core CPU | Wireless CarPlay & Android Auto | Keep OEM Controls
This guide walks you through upgrading the factory radio in your 2004-2010 BMW X3 with the Topdisplay touch screen system. It brings modern features like Wireless CarPlay, Android Auto, and a crisp QLED display to your E83 — all while keeping your original steering wheel controls and OEM functions intact. Took me about 35 to 60 minutes from start to finish using basic tools. Let's get into it.
Step 1: Pop Off the Top Vent Trim
Start by prying off the upper vent trim panel above the radio. Use a plastic pry tool and work your way around the edges — the clips will release with moderate pressure. No screws here, just clips.
Step 2: Disconnect and Remove the Vent Assembly
Once the vent panel is loose, reach behind it and unplug the hazard light switch connector and any other cables attached. Then lift the entire vent assembly out of the dashboard. Set it aside somewhere safe.
Step 3: Remove the Center Console Trim
The center console trim around the shifter needs to come off next. Lift the front edge to release the clips, then work your way back. You may need to remove a couple of screws underneath — a cordless drill makes quick work of them. Pull the trim piece up and disconnect any attached switch connectors.
Step 4: Pull Out the Factory Radio
With the vents and trim out of the way, you now have clear access to the factory radio. Remove the screws holding it in place on the sides, then slide the unit forward and disconnect all the wiring plugs from the back. The whole unit comes out in one piece.
Step 5: Connect the Wiring Harness
Grab the included Topdisplay wiring harness adapter. It's plug-and-play — match the connectors to the factory plugs you just disconnected. Route the cables neatly through the dash cavity so nothing gets pinched when you mount the new screen. Double-check every connection is fully seated.
Step 6: CRITICAL — Power-On Test Before Final Assembly
DO NOT skip this step. Before bolting everything back together, turn on the ignition and test the new unit. Verify the screen powers up, touch functions work, sound comes through all speakers, and both CarPlay and Android Auto connect properly. Wiggle the harness connections while the unit is on to make sure nothing is loose. If something isn't right, it's a hundred times easier to fix now than after reassembly.
Step 7: Mount the New Topdisplay Screen
With everything tested and confirmed working, secure the mounting bracket into the dash opening. Then slide the Topdisplay screen onto the bracket and fasten it. The fitment is designed specifically for the E83, so it should sit flush against the dash contours.
Step 8: Reinstall All Trim Panels
Reverse the removal process. Snap the vent assembly back into place, reconnect the hazard switch, and press the center console trim down until all clips click. Give everything a firm press to make sure there are no gaps. Fire up the car one final time and enjoy your new setup.
Installation Summary
| Aspect | Detail |
| Time Required | Approximately 35 to 60 minutes |
| Difficulty | Easy to Moderate — no advanced skills needed |
| Tools Needed | Plastic pry tool, screwdriver, cordless drill (optional but helpful) |
| Best For | DIY-minded BMW X3 owners who want modern tech without replacing their car |

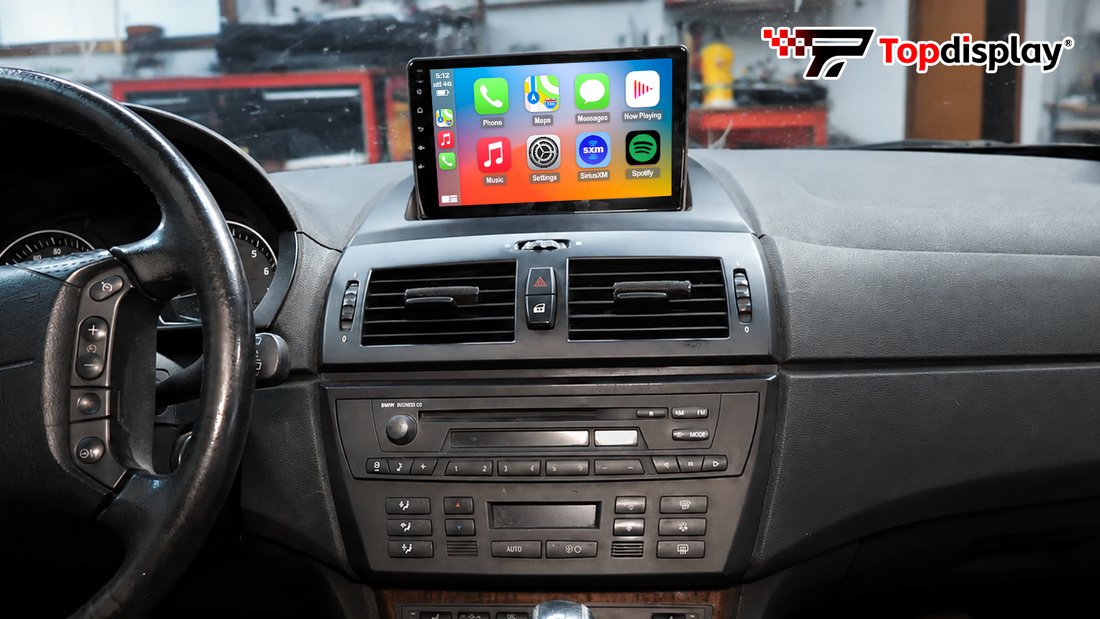

The difference after the upgrade is night and day. The QLED screen is sharp and responsive, Wireless CarPlay fires up automatically as soon as you start the car, and the 8-core processor keeps everything running smooth — no lag when switching between maps, music, and calls. Best part? Your steering wheel buttons, parking sensors, and all original vehicle settings still work exactly as before. It genuinely feels like a modern infotainment system, not an afterthought bolted onto a 20-year-old dashboard.
Common Questions
Does this mod damage the original car?
No. The entire install is reversible. The harness is plug-and-play — you are not cutting or splicing any factory wires. If you ever want to go back to stock, just unplug the adapter and reinstall the original radio.
Do I need professional tools?
Nope. A plastic pry tool and a basic screwdriver are all you really need. A cordless drill speeds up a couple of screws but is completely optional.
How hard is this honestly?
If you have ever swapped a light fixture or assembled IKEA furniture, you can handle this. The hardest part is being patient with the plastic trim clips — they can feel stubborn but won't break if you apply steady even pressure. Take your time, follow the steps in order, and you will be fine.
Do OEM features still work?
Yes — that is one of the main selling points of this unit. Steering wheel audio controls, parking sensor beeps, trip computer data, and climate control display all function normally. The Topdisplay system is designed to integrate with the car's CAN bus, so nothing gets lost in the upgrade.
