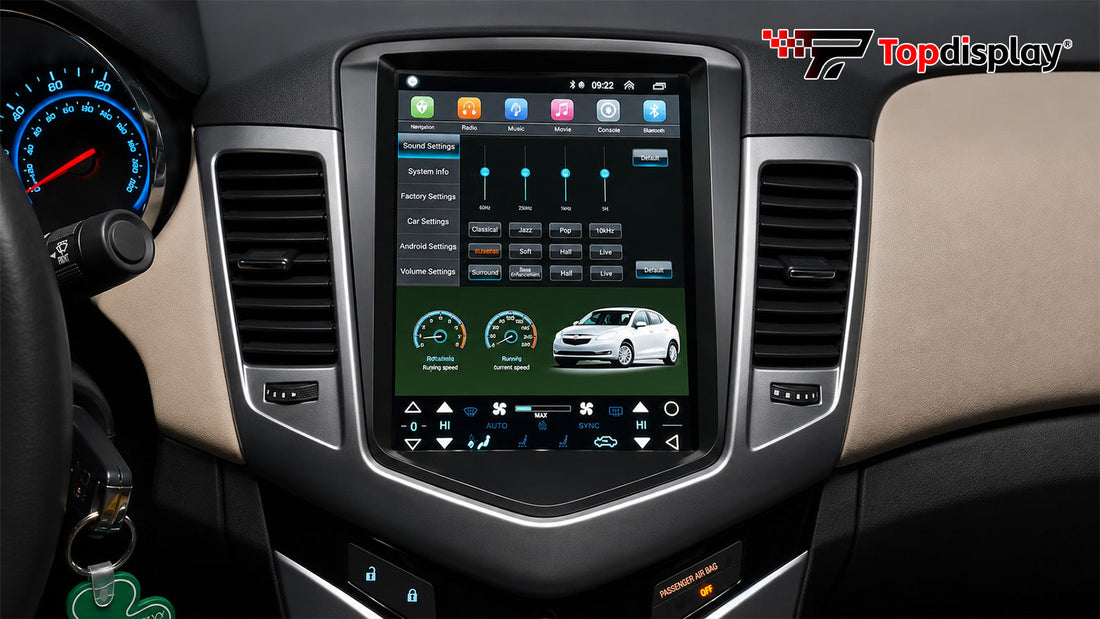

2009-2015 Model  |  9.7-inch QLED 8-Core CPU  |  Touchscreen Stereo with Wireless CarPlay & Android Auto

If your 2009-2015 Chevy Cruze still has the factory small screen or basic CD player, this Topdisplay upgrade is one of the cleanest ways to bring it into 2024. It keeps your original steering-wheel controls, AC buttons, and dash layout while giving you a large touchscreen, 8-core CPU, wireless CarPlay & Android Auto, and built-in navigation. Below is exactly what the install looks like from start to finish.

Step 1: Pry Off the Center Dash Trim

Start with a plastic pry tool and gently pop off the center dash bezel around the screen and air vents. Work from the edges so you don't scratch the plastic. The whole trim panel comes off as one piece.

Step 2: Remove the Factory Radio

With the trim out of the way, you'll see the original radio and the screws holding it in. Remove them and carefully pull the factory head unit forward.

Step 3: Disconnect the Original Harnesses

Reach behind the radio and unplug the main wiring connectors and antenna. They use standard GM clips, so press the tabs and pull them straight out.

Step 4: Prepare the Topdisplay Unit

Unpack the new Topdisplay stereo. It comes pre-installed in a matching Cruze dash frame and includes the plug-and-play wiring adapter. Everything lines up with the factory mounting points.

Step 5: Connect Power and Data Plugs

Plug the supplied harness into the back of the Topdisplay unit. Match the main power plug, antenna, and any optional cables. The harness is labeled, so it's hard to get wrong.

Step 6: Slide the New Screen Into the Dash

Carefully push the Topdisplay unit into the factory opening. It sits flush with the dash and uses the same screw locations as the original radio.

Step 7: Snap the Trim Back In

Reinstall the center dash trim by pressing it back into the clips. Make sure it clicks evenly on all sides and the AC panel is seated properly.

Step 8: Power On and Test

Turn the key to ACC and boot the unit. Check FM radio, Bluetooth, touchscreen response, steering-wheel controls, and GPS navigation before finishing up.

What Owners Usually Want to Know

Will this damage my original car? No. The install is fully reversible. The Topdisplay kit uses the factory mounting points and a plug-and-play harness, so nothing needs to be cut or spliced.

Do I need professional tools? Not really. A set of plastic pry tools and a basic screwdriver are enough. The hardest part is being patient with the trim clips.

How difficult is the install? Moderate and very doable in your driveway. If you've ever replaced a phone battery or built IKEA furniture, you can handle this.

Are OEM functions kept? Yes. Steering-wheel controls, AC panel buttons, and factory settings stay working. The unit also reads car data like RPM and speed for the dashboard-style screen.

Install Summary

• Total install time: About 30-45 minutes for a first-timer.
• Difficulty: Moderate / DIY-friendly.
• Best for: 2009-2015 Chevrolet Cruze owners who want a modern touchscreen without losing factory controls.
• Real-world experience: The screen is responsive, navigation is built-in, and the wireless CarPlay/Android Auto connection makes the daily drive feel like a much newer car. OEM steering-wheel and AC buttons continue to work exactly as before.
