Topdisplay Chevrolet Silverado Radio Upgrade Installation Guide

---

Product: Topdisplay Chevrolet Chevy Silverado 2014–2018 Radio Upgrade

Specs: 10.1-inch QLED Touchscreen | 8-Core CPU | Wireless CarPlay & Android Auto | Retains OEM Controls

So you pulled the trigger on a Topdisplay radio upgrade for your Silverado. Good call. I just went through the install on my 2016, and honestly, it's way more straightforward than it looks. If you can swap out a light fixture at home, you can do this. Here's how it went down, step by step.

---

Step 1: Pop Off the Factory Trim Panels

Start by gently prying off the silver trim bezel around the factory radio and climate controls. Work your way around with a plastic pry tool — no metal screwdrivers, you'll scratch the dash. The whole bezel comes off in one piece. Set it aside on the seat.

Removing trim

---

Step 2: Unscrew and Pull Out the Factory Stereo

With the trim off, you'll see four screws holding the factory head unit in place. Buzz them out with your power driver. Once they're out, grab the old unit by the sides and slide it forward. It comes right out, revealing the cavity and factory wiring behind.

Pulling out old stereo

---

Step 3: Connect the Wiring Harness

This is where the magic happens. Disconnect all the factory plugs from the back of the old radio — each one has a release tab you push with a small flathead. Then grab the Topdisplay-supplied harness. It's plug-and-play: each connector only fits one place, so you can't mess it up. Match color to color, clip them in until you hear the click.

Wiring harness

---

Step 4: Plug in RCA, USB & Antenna Cables

With the main harness squared away, connect the RCA audio/video cables, the GPS antenna lead, and the USB extension cables. The USB ports are especially handy — I routed mine down to the cubby below the climate controls for a clean look. The factory AM/FM antenna plugs right into the new unit too.

Connecting wires

---

Step 5: Tuck and Route Everything Neatly

Before mounting the unit, take a minute to bundle and tuck all the wires neatly into the dash cavity. There's a surprising amount of room behind the stereo in these trucks. Push the harness bundles toward the bottom and sides so nothing pinches when you slide the new unit in.

Routing wires

---

Step 6: Mount the New Head Unit

The Topdisplay unit comes pre-mounted in a custom-fit dash kit that matches your Silverado's contours perfectly. No cutting, no trimming — it just fits. Slide the whole assembly into the dash, making sure no wires are trapped, and press firmly until it seats flush. It locks in with the factory clip points.

Mounting new unit

---

Step 7: Power On & Final Setup

Turn the key to accessory and watch it come alive. The Android logo pops up, and within seconds you're on the home screen. Go through the initial setup wizard — language, Wi-Fi, and pairing your phone for Wireless CarPlay or Android Auto takes about two minutes. Tap into the vehicle settings menu to confirm your steering wheel controls, backup camera, and climate info are all talking correctly.

Booting up

---

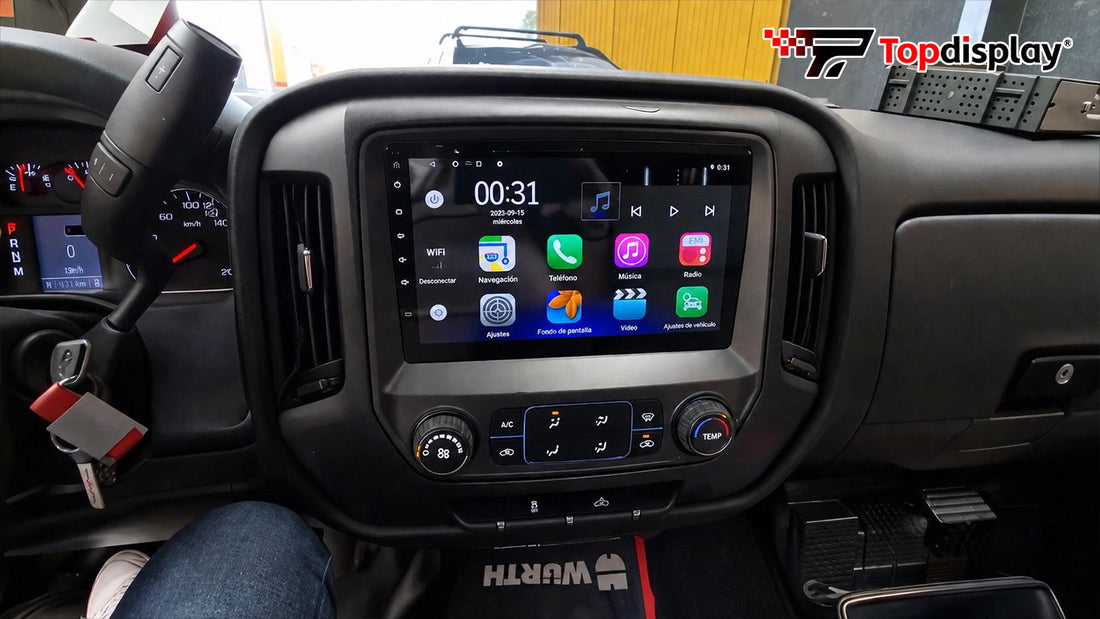

The Finished Result

That 10.1-inch QLED screen transforms the whole cabin. Wireless CarPlay fires up automatically when you start the truck, the touch response is snappy thanks to the 8-core processor, and — this is the part I loved — every single factory control still works. Steering wheel buttons, backup camera, factory USB ports, even the OEM climate settings show up on screen.

Installation complete

---

FAQ: Stuff I Wondered Before Starting

Does this damage the factory wiring?

No cutting or splicing. The Topdisplay harness is fully plug-and-play. Your factory connectors stay intact, and you can swap the original radio back in under an hour if you ever wanted to.

Do I need professional tools?

Nope. A plastic pry kit, a driver, and a small flathead screwdriver are the only tools you touch. No soldering, no multimeter, no scary stuff.

How hard is this, really?

If I had to put a number on it: 3 out of 10. The trim pops off easily, the screws are accessible, and the wiring is color-matched. I'd never done a car stereo before this and finished in about an hour.

Will I lose my OEM features?

Not a single one. Steering wheel controls, backup camera, factory USB ports, climate control data, even the chimes and alerts — everything carries over. That's the whole point of the Topdisplay kit.

---

Installation Summary

Total Time	60–90 minutes for a first-timer
Difficulty	Beginner-friendly (3/10)
Best For	Any Silverado 2014–2018 owner who wants modern CarPlay/Android Auto without losing the factory feel
Real-World Experience	Wireless CarPlay connects in seconds. The QLED screen is bright and crisp even in direct sunlight. The 8-core CPU keeps everything fluid — no lag swiping between apps. And the 10.1-inch screen makes Google Maps actually usable compared to squinting at a phone mount. It genuinely feels like a 2025 truck from the driver's seat.

If you're on the fence — just do it. It's the single best upgrade I've done to my Silverado.
