Topdisplay Ford Escape 2013-2019 · Radio Upgrade Guide，8-Core CPU · Touch Screen Stereo · Wireless CarPlay & Android Auto · Keep OEM Controls
Give your Escape a smarter, sharper cockpit — in under an hour, with nothing but hand tools and this guide.
8-Core CPU · Touch Screen Stereo · Wireless CarPlay & Android Auto · Keep OEM Controls
Why Upgrade?
Your factory radio has done its job — but it’s stuck in the past. The Topdisplay upgrade swaps it for a fast 8-core touchscreen that wakes your whole dashboard up:
- 8-Core CPU — snappy menus, quick boot, smooth multitasking.
- Wireless CarPlay & Android Auto — no cables, your phone just connects.
- Keep OEM Controls — steering wheel buttons and factory functions still work.
- Clean 2013-2019 Escape fit — designed to drop straight into your dash.
Everything below follows the install video frame by frame, so what you read is exactly what you’ll see on screen.
At a Glance
| Processor | 8-Core CPU |
| Connectivity | Wireless CarPlay & Android Auto |
| Display | Capacitive Touch Screen Stereo |
| Compatibility | Ford Escape 2013-2019 · Keeps OEM Controls |
The Install — Step by Step

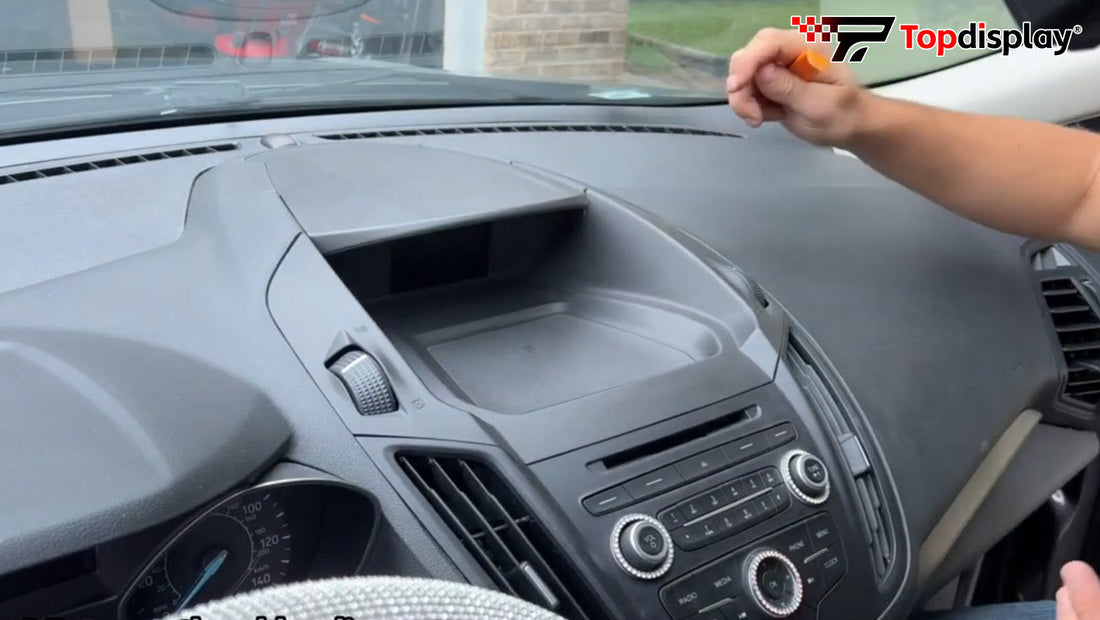

Step 1 · Pop the Dash Top Cover
What you do: Pry up the black plastic cover on top of the dash with the tool, then peel back the long non-slip pad underneath.
Fig. — Step 1 · Pop the Dash Top Cover
Step 2 · Loosen the Bolts & Pull the Bracket
What you do: Use the ratchet wrench to loosen the trim bolts above the center console, then grip and pull out the black plastic bracket.
Fig. — Step 2 · Loosen the Bolts & Pull the Bracket
Step 3 · Unclip the Dashboard Cover & Padding
What you do: Pry off the dark gray dashboard cover, then lift away the dust cover and foam padding underneath.
Fig. — Step 3 · Unclip the Dashboard Cover & Padding
Step 4 · Unclip the Lower Trim Panel
What you do: Work the pry tool around the lower center panel to pop it free, exposing the radio’s mounting area.
Fig. — Step 4 · Unclip the Lower Trim Panel
Step 5 · Pull the Factory Radio & Unplug the Harness
What you do: Pry the original stereo out of the dash, slide it forward, and disconnect the wiring harness from the back.
Fig. — Step 5 · Pull the Factory Radio & Unplug the Harness
Step 6 · Mount the A/C Vent Assembly & Bracket
What you do: Fit the new air-conditioning vent assembly into the opening and secure the mounting bracket in place.
Fig. — Step 6 · Mount the A/C Vent Assembly & Bracket
Step 7 · Wire It Up, Slide It In & Power-On Test (CRITICAL — DO NOT SKIP)
What you do: Plug the Topdisplay harness into the new screen and connect it to your car’s factory plugs behind the dash. Fit the new 8-core touchscreen into place, then power everything on and tap through the screen with your finger.
Fig. — Step 7 · Wire It Up Behind the Dash
Questions Owners Ask
Q: Will it damage my factory wiring?
A: No. The Topdisplay harness plugs into your stock connectors with no cutting or splicing. Want to go back to factory? Just reverse the steps.
Q: Do I need professional tools?
A: No. The whole job uses an orange pry tool and a ratchet wrench — things you probably already have or come with the kit.
Q: Is it hard to install?
A: If you can pop a trim clip, you can do this. The 7 steps above mirror the video exactly, and every panel is designed to be removed and reused.
Q: Do I keep my original features?
A: Yes. Keep OEM Controls — steering wheel buttons, factory settings and vehicle functions stay working with the new screen.
Final Wrap-Up
Here’s the honest owner’s take after watching the whole install play out:
- Install time — roughly 30–45 minutes for a first-timer working at a relaxed pace.
- Difficulty — Easy to moderate. Trim removal is the only ‘tricky’ part, and the pry tool handles it.
- Who it’s for — Anyone driving a 2013-2019 Escape who wants modern connectivity without paying dealer prices.
- The upgrade experience — A fast, responsive touchscreen with wireless CarPlay & Android Auto that makes the cabin feel years newer — and you keep your OEM controls.
Disclaimer: This guide reflects the install shown in the provided video. Always disconnect the vehicle battery before electrical work if you have any doubt, and check your local regulations. Installation results may vary by trim level.
