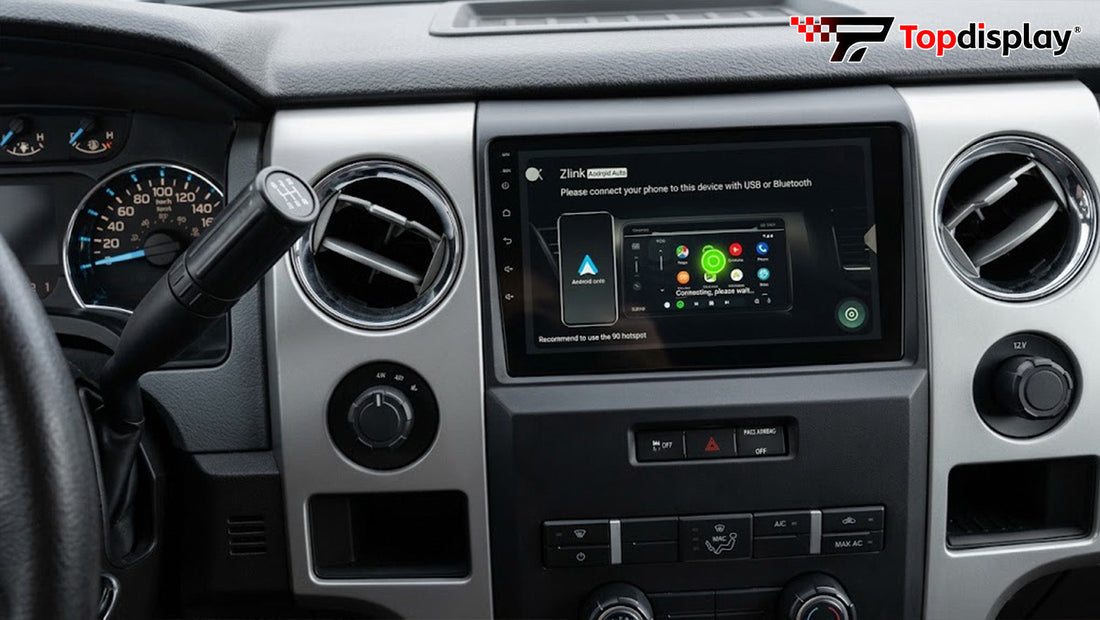

Topdisplay Ford F-150 2009–2012 Radio upgrade, 8-core unit is snappy, Wireless CarPlay / Android Auto connect automatically
Old Truck, New Brains: An 8-Core CarPlay & Android Auto Upgrade in Under an Hour
Let’s be honest: the factory radio in a 2009–2012 F-150 still works, but it feels every year of its age. No CarPlay, sluggish response, and calls that sound like they’re coming from a tin can. So I swapped mine out for a TOPdisplay F-150 radio upgrade — and the whole truck woke up. Here’s the install as it actually happened, trimmed down to the steps that matter. No owner’s-manual fluff, just what I did.
Why This Upgrade Pulls Its Weight
- 8-Core CPU — a genuinely fast Android experience: snappy boot, smooth maps, lag-free multitasking.
- Wireless CarPlay & Android Auto — no cables. It connects the moment you settle into the seat.
- Keeps OEM Controls — your factory buttons and panel layout carry straight over, so nothing about your truck’s controls changes.
The whole thing is clip-based and needs no special tools — I did every step by hand. Let’s get to it.
Step 1 — Pop Off the Lower Trim Panel
What I did: Started at the bottom. The small panel around the 12V / cigarette-lighter area comes off first — I worked a finger behind the edge and it simply unclipped. Nothing forced, nothing broken. Just a clean pop.
Step 2 — Release the Upper Dash Trim
What I did: With the lower piece out, I found the clips holding the dash trim above the radio, pressed down lightly at the clip points, and worked the whole upper cover loose. It lifts away in one piece — a gentle tug, and it’s off.
Step 3 — Pull the Factory Radio & Unplug the Harness
What I did: The stock head unit slides straight out once the bezel is gone. I reached behind it and unplugged every connector straight from the factory harness. Every plug is keyed, so you physically can’t re-connect anything the wrong way.
Step 4 — Eyeball the New Fascia Against the Factory One
What I did: Before touching anything else, I held the TOPdisplay trim panel next to the old bezel: vent positions, button cutouts, and clip points line up 1:1. That’s the “keep OEM controls” promise in the flesh — the dash buttons stay exactly where Ford put them.
Step 5 — Free the Metal Mounting Bracket from the Old Radio
What I did: The stock radio sits on a steel bracket. I took the old unit off that bracket so the TOPdisplay unit could reuse the very same mounting points. It swaps over as one tight piece — no drilling, no custom mounts, no guesswork.
Step 6 — Seat the New Topdisplay Unit Into Place
What I did: Now the fun part: the new 8-core head unit docks into the original metal bracket like it was built for it — because it was. Slide the whole assembly back into the dash opening, and it settles into the factory spot like it never left.
Step 7 — Power On & Test Everything (CRITICAL — DO NOT SKIP)
What I did: Key on. This is the step that matters, so test it all before snapping the trim back: the screen boots, then Wireless CarPlay and Android Auto connect with no cable in sight. When I tested it, my music app was already pulling my playlist — that’s wireless in action. Verify every button and feature now, while you can still reach behind the dash.
Install Summary
| Item | Notes |
| Total install time | Roughly 30–45 minutes at a relaxed, take-your-time pace. |
| Difficulty | Easy. Clip-based panels, keyed plugs, and the original metal bracket reused — I did it all by hand. |
| Best for | 2009–2012 F-150 owners who drive their truck daily and want modern connectivity without a shop install. |
| Real-world feel after upgrade | The 8-core unit is snappy, Wireless CarPlay / Android Auto connect automatically, and the original dash and steering-wheel controls still work — the truck drives the same, but the cabin finally feels new. |
What You Probably Want to Know Before You Start
Q: Will this damage my truck?
A: No. It’s plug-and-play into the original harness — I didn’t cut or splice a single wire — and every part unbolts back to stock if you ever sell the truck.
Q: Do I need professional tools?
A: Not really. On camera I did the entire install by hand. A plastic trim tool is nice to have, but you won’t need a dash kit, adapter brackets, or a soldering iron.
Q: Is it hard to install?
A: No. Panels are clip-based, connectors are keyed so they only fit one way, and the new unit reuses the factory metal bracket. Under an hour at complete-beginner level.
Q: Do I keep the original factory functions?
A: Yes — and that’s the whole idea behind Topdisplay’s keep-OEM-controls design. Your dash buttons and steering-wheel controls carry over, so you don’t lose a single function you liked about the truck.
（The content is for reference only）
