TopDisplay Ford F-150 Radio Upgrade

Installation Guide



Vehicle: 2009 – 2012 Ford F-150 (Installation Example)



Product Introduction

The TopDisplay CarPlay & Android Auto Infotainment System is a premium all-in-one upgrade designed for the 2009–2012 Ford F-150. It replaces the aging factory radio with a modern, high-definition touchscreen head unit integrated into a custom-molded carbon-fiber dash panel that precisely matches the F-150 interior contours. Every detail — from the vent bezels to the climate control cutouts — is engineered to OEM specifications for a seamless, factory-installed appearance.

Powered by an Android-based operating system, the TopDisplay unit delivers wireless and wired Apple CarPlay, Android Auto, Bluetooth 5.0 hands-free calling and audio streaming, built-in GPS navigation, backup camera support, and full access to the Google Play Store. The high-resolution capacitive touchscreen offers responsive multi-touch control, while the retained factory steering wheel controls keep you focused on the road. This plug-and-play system brings your F-150 into the modern era of connected driving — without cutting, splicing, or permanent modification.



Key Features

• Wireless & Wired Apple CarPlay / Android Auto: Seamlessly connect your iPhone or Android smartphone for music, maps, messages, and voice assistants.

• Custom Carbon-Fiber Dash Panel: Precision-molded to fit 2009–2012 F-150 dash contours; includes all vent bezels and climate control cutouts.

• High-Definition Touchscreen: Bright, responsive capacitive display with wide viewing angles and anti-glare coating.

• Bluetooth 5.0 & Hands-Free Calling: Crystal-clear calls with built-in microphone. Wireless audio streaming with aptX support.

• Steering Wheel Control Retention: Factory audio and phone buttons remain fully functional — no programming required.

• Backup Camera Input: Auto-switches to camera feed when shifted into Reverse. Compatible with aftermarket cameras.

• Plug-and-Play Installation: Vehicle-specific wiring harness with OEM connectors — no cutting, splicing, or soldering needed.





Installation Steps

The following guide walks you through the complete installation of the TopDisplay system in a 2009–2012 Ford F-150.

Step 1: Unbox & Inspect the TopDisplay Kit

Lay out all components on a clean work surface. Verify you have the TopDisplay head unit with carbon-fiber dash panel, main wiring harness, GPS antenna, backup camera cable, and mounting hardware. Compare the new carbon-fiber panel against the original factory wood-grain panel to confirm perfect fitment for the 2009–2012 F-150. Inspect all connectors and pins for any shipping damage before proceeding.

New TopDisplay carbon-fiber panel (left) beside the factory wood-grain panel (right) — confirm fitment before starting.

Step 2: Disconnect the Battery & Remove the Glove Compartment

Open the hood and disconnect the negative battery terminal using a 10mm wrench to prevent electrical shorts. Tuck the cable safely away from the terminal. Inside the cabin, open the glove compartment, remove the retaining screws or side clips, and gently drop it down to provide clear access to the back of the center dash area and wiring harness routes.

Glove compartment dropped down to expose the wiring area behind the center dash.

Step 3: Remove the Factory Radio & Dash Trim Panel

Using a plastic trim removal tool, gently pry around the edges of the center dash bezel surrounding the factory radio and climate controls. Work carefully to release all clips without scratching the dash. Once the bezel is free, unplug all connectors from the factory radio — main harness, antenna lead, and climate control connectors — and slide the entire radio and panel assembly out of the dash cavity.

Center dash with the factory radio and trim panel fully removed, exposing the mounting cavity.

Step 4: Transfer Climate Control Knobs to the TopDisplay Panel

With the original factory panel on your work surface, carefully remove the climate control knobs, A/C vent direction tabs, and any trim rings. Transfer each component onto the matching cutouts of the new TopDisplay carbon-fiber dash panel. Ensure every knob seats properly and rotates freely through its full range. This step guarantees your factory climate controls integrate seamlessly and look completely stock with the new panel.

Transfer factory climate knobs and vent tabs into the matching cutouts on the new TopDisplay panel.

Step 5: Connect the TopDisplay Wiring Harness

With the factory panel removed, locate the vehicle-side wiring connectors inside the dash cavity. Plug each connector into the matching port on the TopDisplay harness adapter — every connector is uniquely keyed to prevent incorrect connections. Then connect the harness to the rear port panel of the new TopDisplay head unit. Also attach the GPS antenna (route to the top of the dashboard for best reception), backup camera trigger wire, and USB extension cables at this stage. Bundle excess wiring neatly with zip ties to avoid rattles.

Factory panel removed — connect the vehicle wiring harness to the new TopDisplay adapter in the exposed dash cavity.

Step 6: Mount the TopDisplay Unit & Carbon-Fiber Dash Panel

Align the new TopDisplay head unit and carbon-fiber dash panel assembly with the factory mounting points in the dash. Carefully slide the assembly into the dash opening, ensuring no wires are pinched behind the unit. Secure the assembly using the original factory mounting screws. Press firmly around the entire perimeter of the carbon-fiber panel until every clip audibly snaps into place. The panel should sit completely flush with the surrounding dash.

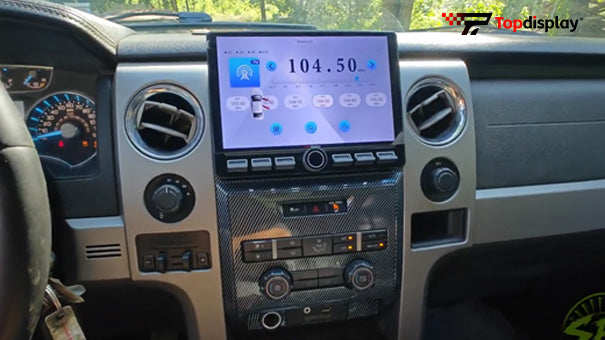

TopDisplay unit fully mounted and seated flush — the carbon-fiber panel integrates seamlessly with the F-150 dash.

Step 7: Reconnect the Battery, Reinstall Glove Box & Power On

Reconnect the negative battery cable and tighten the 10mm clamp securely. Reinstall the glove compartment by reversing the removal process — snap it back into position and secure all retaining screws. Start the F-150 and allow the TopDisplay system to complete its initial boot sequence. The screen should power on and display the Android setup wizard. Follow the on-screen prompts to set language, date/time, and Wi-Fi connection.

System powered on — verify that factory steering wheel audio controls remain fully functional.

Step 8: Test CarPlay, Android Auto & Backup Camera

Connect your smartphone via USB cable or pair wirelessly for Apple CarPlay / Android Auto. Verify the touchscreen responds accurately and all apps load correctly. Test Bluetooth hands-free calling and audio streaming. Shift the vehicle into Reverse to confirm the backup camera feed appears automatically on screen with clear, unobstructed visibility.

Backup camera feed displayed automatically when shifted into Reverse.

Step 9: Explore Your TopDisplay Features

Now that installation is complete, take a few minutes to personalize your new TopDisplay system. Open Settings to customize the startup boot logo, pair all family devices via Bluetooth 5.0, download favorite apps from the Google Play Store (navigation, music, podcasts), set your preferred wallpaper, and fine-tune the equalizer for optimal audio. The Android-based platform transforms your 2009–2012 F-150 with modern navigation, media streaming, voice assistants, and a fully connected driving experience that rivals brand-new vehicles.

Android home screen with full app grid — install apps, customize settings, and enjoy your upgraded F-150.
