Topdisplay Ford F150 2015-2020
Radio Upgrade

12.1-inch QLED Touch Screen Stereo

Keep OEM Controls · Plug & Play Harness · 2015-2020 Ford F150

So you've got a 2015-2020 Ford F150 and that factory 4-inch screen is starting to feel its age. I've been there. The good news? Swapping it out for a Topdisplay 12.1-inch QLED unit is way easier than you'd think — no cutting, no splicing, and every single OEM control stays intact. I documented every step from my own install so you can knock this out on a Saturday afternoon. Let's get into it.

What You'll Need

• Your Topdisplay F150 kit
• Plastic trim pry tool set
• 7mm and 10mm socket wrenches
• Screwdriver (power driver optional but saves time)
• Small flathead screwdriver (for harness clips)
• A clean workbench or large table for assembly

Installation Steps

Step 1: Disconnect the Battery

Safety first — always. Pop the hood, grab your 10mm socket, and disconnect the negative battery terminal. This prevents any electrical shorts while you're working behind the dash. Tuck the cable aside so it doesn't accidentally spring back onto the terminal.

Step 2: Remove the Factory Dash Trim

Grab your plastic pry tool and start at the edges of the dash trim surrounding the radio and climate controls. The trim is held in by metal spring clips — work your way around gently, and the entire panel pops right off. Set it aside somewhere safe; you'll need to reinstall it later.

Step 3: Disconnect the Factory Radio

With the trim out of the way, remove the screws holding the factory radio and CD player in place. Slide the units out and disconnect every wiring harness plugged into the back. There are several connectors — take your time, press the release tabs, and pull straight out. Route the factory harness cables forward so they're easy to reach for the next step.

Step 4: Transfer the Factory Circuit Board to the New Housing

This is the most critical bench-work step. Remove the factory circuit board (the green PCB with all the chips and connectors) from your original radio unit and carefully mount it into the new Topdisplay housing. This is how the system retains all OEM functionality — factory climate controls, steering wheel buttons, and vehicle settings all flow through this board. The Topdisplay housing has pre-drilled mounting points; just line everything up and secure it.

Step 5: Connect All Wiring to the New Unit

With the circuit board secured, connect the included Topdisplay wiring harness adapter to the back of the new unit. This is fully plug-and-play — no wire splicing required. Connect the main power/speaker harness, the antenna adapter, USB cables, and the CAN bus module. The gold-anodized heat sink on the back is a nice touch — it keeps the 8-core processor cool during long drives with Wireless CarPlay running.

Step 6: Mount the Unit into the Dashboard

Lift the assembled unit into the dashboard cavity. Align the side brackets with the factory mounting holes and secure everything with the original screws. Take care not to pinch any wires behind the unit — tuck them neatly into the cavity as you push the unit into place. A power driver makes quick work of this, but hand-tightening gives you more feel.

Step 7: CRITICAL — Power-On Test Before Final Reassembly

CRITICAL: Before snapping all the trim back on, reconnect the battery and turn the key to ACC. The Topdisplay unit should boot up to the Android home screen. Verify that the touchscreen responds, sound comes through the speakers, the backup camera triggers (if equipped), and the climate controls show up on screen. If anything isn't working, now is the time to double-check your harness connections — much easier with the trim still off.

Step 8: Pair Your Phone, and Enjoy

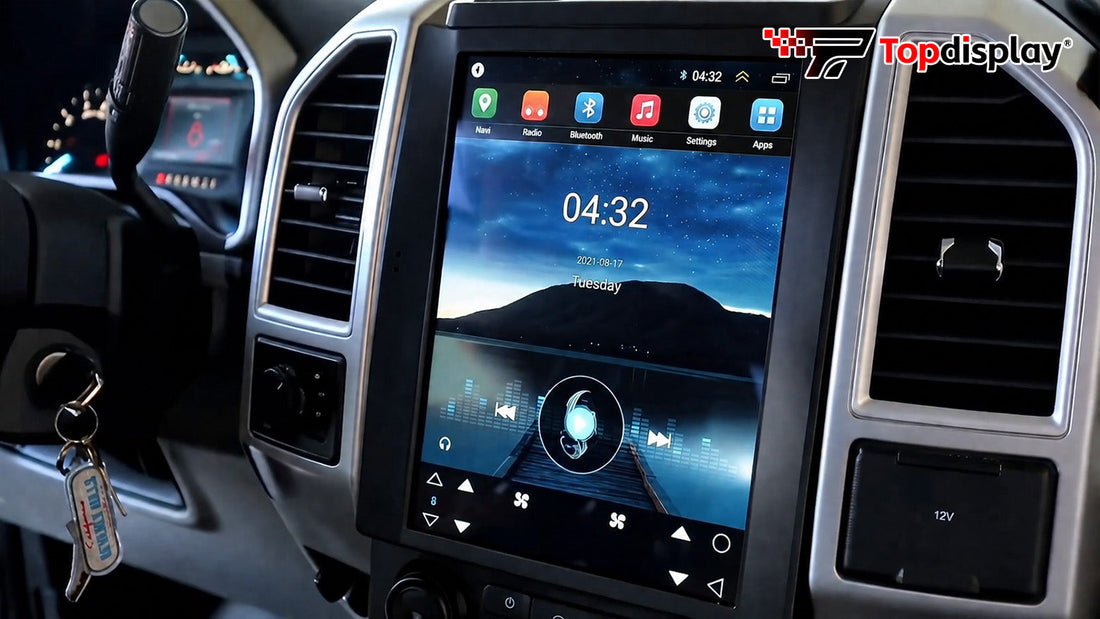

Everything checks out? Reinstall the dash trim panels — they snap back in just as easily as they came off. Once everything is buttoned up, head into Settings to pair your phone via Bluetooth for Wireless CarPlay or Android Auto. Dial in your EQ settings, set up your navigation app of choice, and take a moment to appreciate how that 12.1-inch QLED transforms the entire cabin. You just gave your 2015-2020 F150 a decade-newer tech experience.

Questions You're Probably Asking

Question	Answer
Will this damage my truck?	Not at all. The kit is 100% plug-and-play with no cutting or splicing. Every factory mounting point is reused, and the original trim goes back on perfectly. If you ever wanted to revert to stock (you won't), it's completely reversible.
Do I need professional tools?	A basic socket set, a plastic pry tool, and a Phillips screwdriver are all you need. Nothing exotic. A power driver speeds things up but is totally optional.
How hard is this really?	If you've ever installed a car stereo or assembled IKEA furniture, you can handle this. The most technical part is transferring the circuit board (Step 4), and even that is just removing and replacing screws. No soldering, no wire diagrams.
Do I keep factory features?	Yes — that's the beauty of the Topdisplay design. Steering wheel controls, factory backup camera, climate control display, and vehicle settings all work exactly as before. You're adding Wireless CarPlay and Android Auto on top of everything you already had.

Installation Summary

Aspect	Details
Total Install Time	30–60 minutes (take your time, enjoy the process)
Difficulty Level	Intermediate — no special skills, just patience
Best For	2015-2020 Ford F150 owners who want a modern, large-screen infotainment experience with Wireless CarPlay / Android Auto while keeping every factory feature intact
Real-World Experience	The 12.1" QLED display is a night-and-day upgrade. Wireless CarPlay connects automatically within seconds of starting the truck. The 8-core processor keeps everything buttery smooth — no lag when switching between navigation and music. The OEM climate controls display perfectly on screen, and the factory backup camera integrates seamlessly.

This guide is based on a real installation performed on a 2015-2020 Ford F150. Your specific trim level may have minor variations. Always disconnect the battery before working on vehicle electronics.
