I Put a 14.5" QLED Screen in My F150 — Here's How

Topdisplay Ford F150 2015-2020 Radio Upgrade | Wireless CarPlay & Android Auto | Non-B/O Sound | Keep OEM Controls

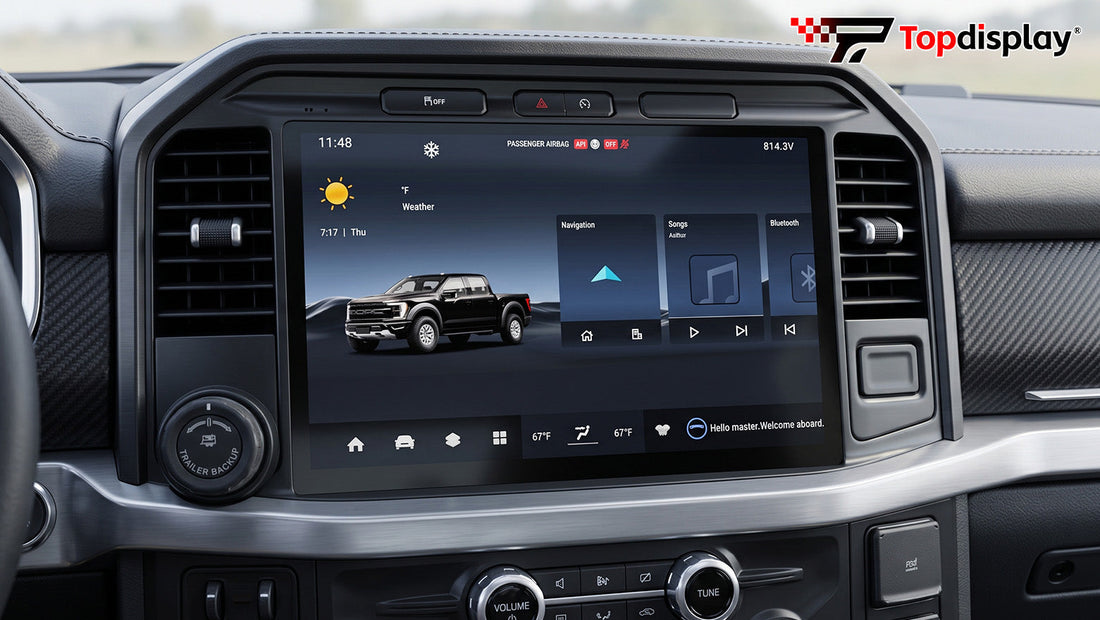

My 2015-2020 F150 had a small, dated factory screen that made the whole cabin feel old. So I swapped in the Topdisplay 14.5-inch QLED 8-Core CPU touch screen stereo — and the truck feels like a brand-new truck. The best part: I kept every factory control, and the whole job took me about an hour in the driveway.

Why This Upgrade

• 14.5-inch QLED 8-Core CPU touch screen stereo — razor sharp, fast, and easy to see in daylight
• Wireless CarPlay & Android Auto — no cables, maps and music load the moment you start the truck
• Non-B/O (non-Bose) sound friendly — works with the factory speakers and amp wiring
• Keep OEM Controls — factory steering wheel buttons, AC, and dash switches all stay fully functional

The Install — 8 Simple Steps

Step 1 — Pop the Storage Cubby & Side Trim Blocks

Start by prying out the small storage cubby with a trim tool, then work the right-side console trim block loose. Everything here is held by clips, so it comes apart clean.

Step 2 — Unplug the Switch Harnesses & Undo the Screen Screws

Unclip the traction-control and hazard switch plugs, then the audio and AC switch plugs. After that, remove the screws holding the factory display in place.

Step 3 — Pull the Stock Screen & Unbolt the Factory Radio

Slide the old display out once its cables are free, then unbolt the factory unit and unplug the three audio plugs behind it. Keep all the screws — you'll reuse them.

Step 4 — Move Your Factory Switches Onto the New Panel

This is the trick that keeps your OEM controls alive: transfer the traction-control, hazard, 4WD, and tow-hook switches from the old trim onto the new Topdisplay panel. They clip right in — no rewiring.

Step 5 — Wire Up the New 14.5" Unit

Plug in the power harness, AC wiring, radio antenna, and GPS antenna, then connect the main Android head-unit connector. Every plug is keyed, so it only fits one way.

Step 6 — Mount the Unit & Refit the Switches

Seat the head unit into the dash, lock it in with the screws, then refit the 4WD switch, AC panel cable, and cigarette-lighter plug. It all clicks back like it was never removed.

Step 7 — Snap the Trim Panels Back

Refit the console side trim blocks and the lower trim panel. Everything lines up flush with the new screen — no gaps, no cutting.

Step 8 — Boot It Up & Set the AC Protocol

Start the truck, open Factory Settings, and pick the 6606 protocol with the matching AC configuration. That final step is what makes your factory AC display and controls work perfectly on the new screen. Then enjoy wireless CarPlay on that big QLED panel.

Install Summary

Item	Details
Total Time	About 1–1.5 hours for a first-timer, taking it slow
Difficulty	Easy to moderate. A 2/5 if you're comfortable with a trim tool and screwdriver
Best For	2015-2020 Ford F150 owners who want a modern 14.5" QLED touch screen, wireless CarPlay/Android Auto, and Non-B/O sound support — without losing factory controls
Real-World Experience	Night and day from the stock screen. The 8-core CPU keeps everything instant, wireless CarPlay is addictive, and keeping every OEM switch means zero adjustment period

Owner Q&A — What You're Really Asking

Will it damage my F150?

No. It's a plug-and-play swap through factory-style harnesses — no cutting, splicing, or soldering. The original unit and panels can be reinstalled anytime, so nothing about your truck is permanently changed.

Do I need professional tools?

No. A trim removal tool and a screwdriver are all you need. No special electronics tools or soldering iron required.

Is it hard to install?

Not really. The panels pop off, the plugs are keyed, and the hardest part is just taking your time with the trim clips. Most people finish in about an hour on the first try.

Do I keep the original car functions?

Yes — that's one of the best parts. You keep the OEM controls: steering wheel buttons, factory AC (just set the 6606 protocol in step 8), and the dash switches, which you simply move onto the new panel. Factory systems are preserved.

Bottom line: if you drive a 2015-2020 F150 with the tired factory radio, the Topdisplay 14.5-inch QLED 8-Core stereo is the best upgrade you can make in a lunch break. Plug it in, snap it back, set the AC protocol, and your truck finally gets the tech it deserves.

(The content is for reference only.)
