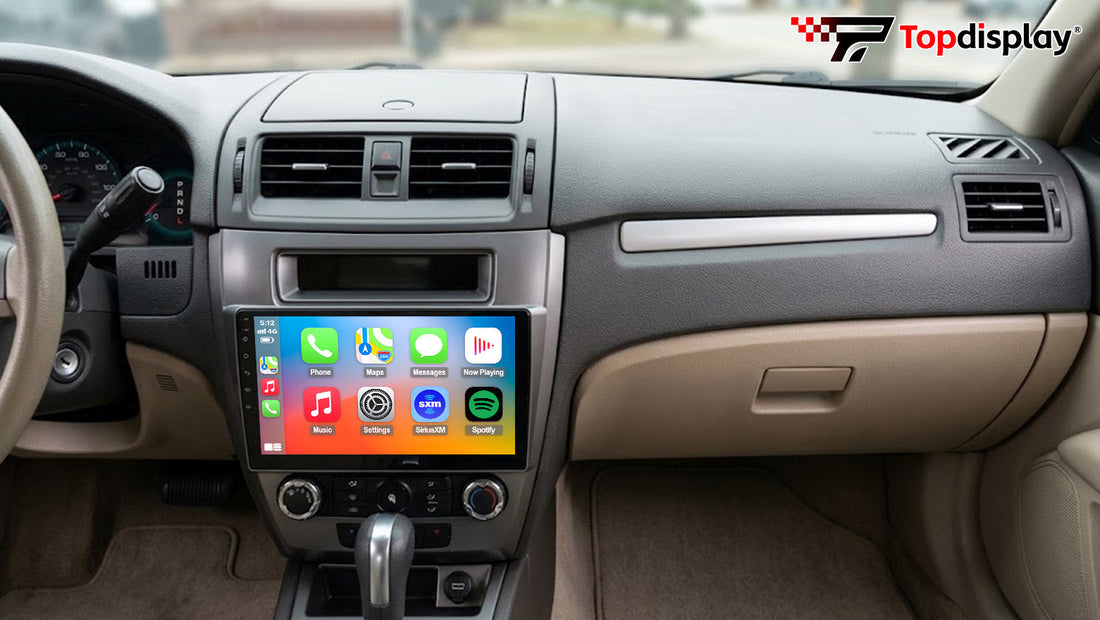

Topdisplay Ford Fusion 2009–2012 Radio upgrade,a properly fast Android unit: quick boots, smooth maps, no lag when you jump between apps.
Old Fusion, New Heart — Wireless CarPlay & Android Auto on a 12-Year-Old Interior
The 2009–2012 Fusion is a great daily driver — until you look at the radio. No CarPlay, dated menus, and cables dangling everywhere. I’d had enough, so I dropped in a Topdisplay Fusion radio upgrade and honestly, the cabin feels a decade newer. This is the install as I actually did it — the steps that matter, trimmed down, no manual-speak.
Why This Upgrade Earns Its Keep
- 8-Core CPU — a properly fast Android unit: quick boots, smooth maps, no lag when you jump between apps.
- Wireless CarPlay & Android Auto — plug the phone in once during setup, and it connects itself from then on.
- Keeps OEM Controls — the factory buttons and trim layout carry straight over, so the dash looks and works like stock.
What you’ll realistically need: a plastic trim tool, a 7 mm socket, and a screwdriver. Everything else is just patience with the clips.
Step 1 — Pop the Upper Trim & Storage Tray
What I did: Started up top. I worked a plastic trim tool along the upper dash edge and the storage-tray cover popped free, exposing the open slot above the dash. Gentle pry first, let the clips do the work.
Step 2 — Release the Center Console / Shifter Trims
What I did: Next, the center channel: the cupholder panel, the trim beside the shifter, and the clips at the side of the console. The trim tool nudges each one loose — then the whole shifter surround lifts away in one piece.
Step 3 — Unbolt the Main Dash Panel
What I did: With the trims gone, I found two 7 mm bolts holding the dash stack in place and undid them with a socket. The vent/button fascia around the radio — including the panel beside the steering column — then comes off by hand.
Step 4 — Pull the Factory Unit & Unplug Everything
What I did: The stock head unit slides out of the dash as one assembly with its metal bracket. I reached behind and unplugged every connector from the factory harness — each plug is keyed, so nothing can go back in the wrong way.
Step 5 — Dock the New Unit Into the Original Bracket
What I did: This is where it gets good. The TOPdisplay head unit seats into the factory bracket position without any cutting or custom mounts — I drove it in and tightened it down, ready to accept the stock trim.
Step 6 — Plug In the Harness: Power, Video & Buttons
What I did: Connector by connector: the main power/data plug, the yellow RCA video link, and the button connector that brings the factory controls back to life. Each one clicks into its own keyed socket — the dash stack wires right up like stock.
Step 7 — Power On & Test Everything (CRITICAL — DO NOT SKIP)
What I did: Key on, and the screen greeted me with the FORD FUSION splash. Test it all before you finish: Wireless CarPlay and Android Auto pairing, the climate panel above the unit, every button, every input. Much easier to fix now than after the trim goes back on.
Install Summary
| Item | Notes |
| Total install time | Roughly 60–90 minutes at a relaxed pace — the Fusion has a few more trim panels than other Fords. |
| Difficulty | Moderate, but very DIY-friendly. Clips, two 7 mm bolts, and keyed plugs — the trickiest part is patience, not skill. |
| Best for | 2009–2012 Fusion owners who drive every day and want modern connectivity without paying a shop for it. |
| Real-world feel after upgrade | The 8-core unit runs fast, CarPlay / Android Auto connect wirelessly the moment you sit down, and the factory buttons all still work — the Fusion finally feels like it skipped a generation. |
What You Probably Want to Know Before You Start
Q: Will this damage my car?
A: No. It connects straight into the factory harness — I didn’t cut or splice a single wire — and every panel unbolts back to stock if you ever sell the car.
Q: Do I need professional tools?
A: No. A plastic trim tool, a 7 mm socket, and a screwdriver cover it. Nothing exotic, nothing expensive.
Q: Is it hard to install?
A: Not really. The Fusion just has more trim to remove than some Fords. Take your time with the clips and you’re genuinely looking at an afternoon, start to finish.
Q: Do I keep the original factory functions?
A: Yes — that’s the whole point of Topdisplay’s keep-OEM-controls design. Your dash buttons and steering-wheel controls carry over, so you don’t lose anything you liked about the car.
