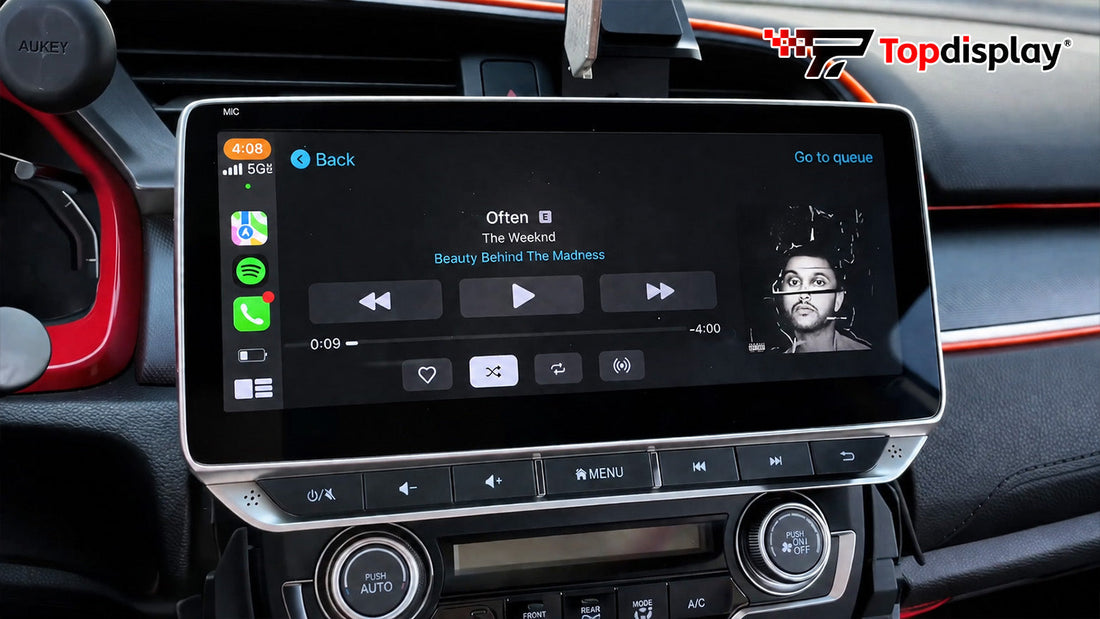

Topdisplay Honda Civic
2016–2021 LX/EX Radio Upgrade

Complete DIY Installation Guide — From Factory Radio to a QLED Touchscreen with Wireless CarPlay & Android Auto

QLED Display  |  8-Core CPU  |  Wireless CarPlay & Android Auto  |  OEM Controls Preserved  |  Plug & Play Harness

If you own a 2016–2021 Honda Civic LX or EX, you know the factory screen gets the job done — but barely. Small, sluggish, and stuck in 2016. Enter the Topdisplay Radio Upgrade: a stunning QLED 8-Core touchscreen stereo that completely transforms your dashboard. You get Wireless CarPlay, Wireless Android Auto, and best of all — it keeps all your OEM steering wheel controls and factory settings intact. No cutting, no splicing, no compromises.

I filmed the entire install on my own Civic. What follows is the real process, step by step. Took me about 20–40 minutes from start to finish with basic hand tools. If I can do it, you can too.

Installation Steps

Step 1: Disconnect the Battery — Safety First

Pop the hood and disconnect the negative battery terminal. This takes 30 seconds and prevents any electrical mishaps while you're working on the dash. No fancy tools needed — just a 10mm wrench. Leave it disconnected until the very end.

Step 2: Remove the Gear Selector Trim

Grab a plastic trim pry tool and gently work your way around the red trim piece surrounding the gear shifter. It's held in by clips — no screws. Start from the edge and lift slowly. You'll hear satisfying pops as each clip releases. Set the trim piece aside somewhere safe.

Step 3: Take Off the Climate Control Panel

With the gear trim out of the way, the climate control panel is next. Pull firmly but carefully — it's also clip-based. Disconnect the wiring harnesses from the back once it's loose. Now you have clear access to the factory radio.

Step 4: Pull Out the Factory Radio

Two screws hold the original head unit in place. Remove them, then slide the factory radio straight out. Unplug all connectors from the back — there are several, but each one is uniquely shaped so you can't mix them up later. The dash will look alarmingly empty at this point. That's normal.

Step 5: Prep Your New Topdisplay Unit

Unbox the Topdisplay kit and lay everything out. The included plug-and-play harness is the star of the show — it matches every factory connector perfectly. Transfer any bracket clips from the old radio to the new one, then attach the wiring harness to the back of the Topdisplay unit. All connectors are color-coded and keyed.

Step 6: Connect & Route the Wiring

Connect the Topdisplay harness to your Civic's factory plugs. There's a generous amount of cable, so take your time tucking everything neatly into the cavity behind the dash. Avoid pinching any wires. The GPS antenna and 4G antennas can be routed toward the glove box area.

Step 7: Mount the New Head Unit

Slide the Topdisplay unit into the dash opening. It fits like OEM — same mounting points, same screw holes. Don't force it; if it's not seating flush, check that no wires are trapped behind the unit. Secure with the original screws.

Step 8: Reconnect Battery & First Boot

Reconnect the negative battery terminal, then turn on the ignition. The Topdisplay QLED screen springs to life — the 8-Core CPU makes boot-up nearly instant. Head to the ZLink app to set up Wireless CarPlay or Android Auto. Your steering wheel controls work right away, no programming needed. That's it — you're done.

Installation Summary

Total Install Time: Approximately 40 minutes (experienced DIY: 20 min, first-timer: 2 hours)

Difficulty Level: Intermediate — no soldering or wire splicing required. All plug-and-play.

Tools Needed: Plastic trim pry tool, 10mm socket/wrench, Phillips screwdriver. That's it.

Best For: 2016–2021 Honda Civic LX & EX owners who want modern tech without buying a new car. Perfect if you use CarPlay or Android Auto daily.

Real-World Experience: The QLED screen is a massive upgrade — bright, responsive, and anti-glare. Wireless CarPlay connects in seconds every time. The 8-Core CPU keeps everything smooth: no lag switching between navigation, music, and calls. Steering wheel volume, track skip, and voice assistant buttons all work exactly like stock. The backup camera also displays on the new screen with better clarity.

Common Questions

Q: Will this damage my car?

Not at all. The Topdisplay kit is completely plug-and-play — every connector matches your Civic's factory wiring. No cutting, no splicing, no permanent modifications. If you ever want to go back to stock (you won't), just reverse the steps and reinstall the original radio.

Q: Do I need professional tools?

No. A $5 plastic trim pry tool and basic hand tools (10mm wrench, screwdriver) are all you need. Everything else is included in the Topdisplay box.

Q: Is it hard to install?

I'd rate it 5/10. The trim removal is the trickiest part — you need patience to avoid scratching anything. Once the panels are off, it's just unplugging connectors and plugging in new ones. Watch the video, follow these steps, and you'll be fine.

Q: Do I keep all factory features?

Yes — steering wheel controls, backup camera, factory USB ports, and even the OEM settings menu are all preserved. The Topdisplay unit integrates seamlessly with Honda's CAN bus system.
