A real owner's walkthrough — the install as it actually happened



I finally swapped the tired factory stereo in my 2004-2010 Honda Odyssey for a Topdisplay 10.2-inch unit, and I filmed the whole thing. This is the short version: 8 steps, hand tools only, no cutting and no soldering. If you've been on the fence about doing this yourself, this is exactly what the job looks like.

What went in

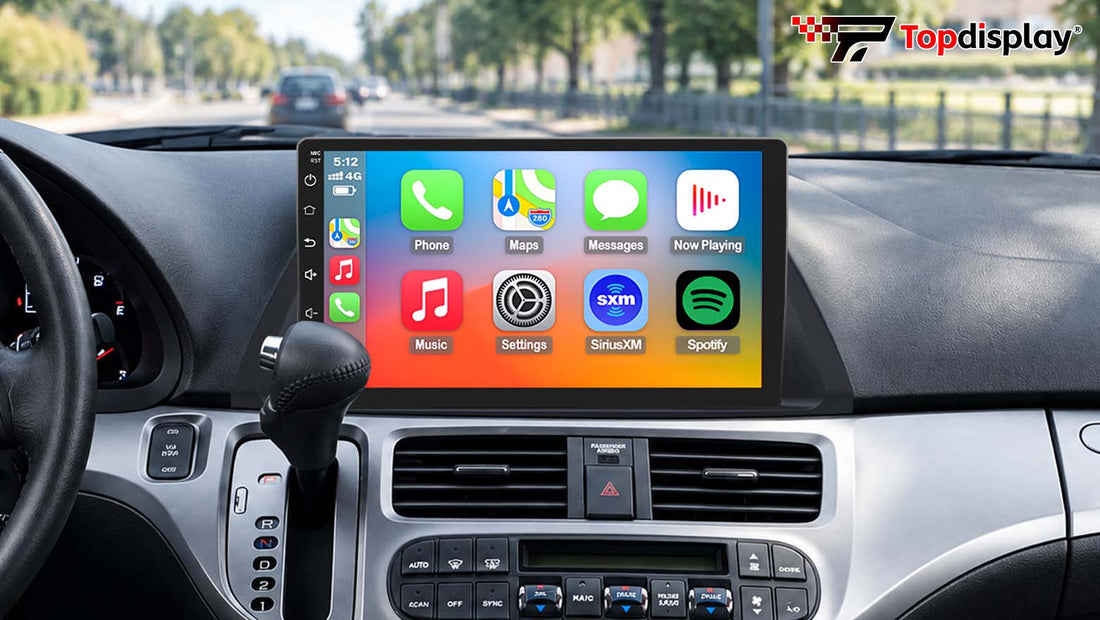

•         Topdisplay 10.2-inch QLED touchscreen stereo — drop-in size for the Odyssey dash

•         8-core CPU head unit, running Wireless CarPlay and Android Auto

•         Wireless CarPlay and Android Auto — phone connects without a cable

•         Plug-and-play harness that keeps the OEM controls working

Tools I actually used

•         Trim removal tool (the orange pry bar does most of the work)

•         Phillips screwdriver

•         Cordless screwdriver for the bracket screws

The install, step by step

Step 1 — Pop the passenger-side trim panel

What I did: started on the passenger side and worked the orange trim tool into the gap above the glovebox, prying the small switch panel loose. It is held by clips only, so it pops out with an even pull. I set it aside with the clips still on it.

The first panel comes off with the trim tool — clips only.

Step 2 — Pull the climate control panel

What I did: gripped the climate control module under the radio and pulled it straight out toward me. No screws here either — it is clip-mounted. I let it hang on its connectors instead of unplugging anything I did not have to.

The climate panel pulls straight out — leave the plugs on.

Step 3 — Take out the screws holding the factory radio

What I did: with the panels out of the way, I reached into the dash with a cordless screwdriver and removed the screws that lock the factory head unit in place. All of them went into a cup so nothing rolled under the seat.

Cordless screwdriver makes short work of the mounting screws.

Step 4 — Pull the factory head unit out

What I did: lifted the silver factory CD unit up and out of the dash cavity, then unplugged the factory harness from the back of it — main connector, the smaller plugs and the antenna. The old unit comes out whole, so it can go back in if you ever sell the car.

The factory radio lifts straight out of the dash.

Step 5 — Check the new head unit before it goes in

What I did: before pushing anything into the dash, I flipped the new Topdisplay unit over and checked the back — metal chassis, screw holes on both sides, and all the ports where I expected them. Same footprint as the factory unit, so it drops onto the original mounting points.

Back of the new 10.2-inch unit: screw holes and ports line up.

Step 6 — Plug in the adapter harness

What I did: matched the harness that came with the new screen to the factory plugs in the dash. The blue and grey connectors click together one at a time, and the remaining leads (reverse camera and CAN) go to their own plugs. Everything only fits one way, so there is no guessing.

Factory plug meets adapter harness — a straight click-together.

Step 7 — Slide the new screen into the dash

What I did: tucked the harness down behind the dash, then slid the 10.2-inch screen into the opening and lined it up with the mounting holes. Pushed it in until it sat flush with the surrounding trim.

The new screen goes in at the factory opening — line up the holes first.

Step 8 — Screw it back down and power up

What I did: refitted the climate panel and the side trim, tightened the screws, and turned the key. The car starts as usual and the dash lights up — the factory layout is intact, just with a bigger screen in the middle.

Trim back on, key in — the car fires up like it always did.



Final install summary

Item	My take after doing it
Total time	The demo video runs about 7 minutes start to finish. Doing it yourself the first time, budget roughly 30-45 minutes — most of it on clips and screws.
Difficulty	Easy to medium. Hand tools only, no cutting, no soldering. If you can pull a trim panel without snapping clips, you can do this.
Who it suits	2004-2010 Honda Odyssey owners who want a 10.2-inch touchscreen with Wireless CarPlay and Android Auto without paying shop labour.
After the upgrade	Bigger 10.2-inch QLED screen, 8-core head unit, Wireless CarPlay and Android Auto, and the OEM controls stay in the dash with a factory-style fit.

The questions I had before buying

Will it damage my original car?

No. Nothing was cut or spliced: the factory harness stays as it is and the adapter harness plugs into it. The original radio can go back in whenever you want.

Do I need special tools?

Not really. A trim removal tool, a Phillips screwdriver and a cordless screwdriver covered the whole job.

Is the install hard?

Easier than it looks. Eight steps, all clip and screw work. The only fiddly part is the wiring, and even that only plugs in one way.

Do I keep my original features?

Yes. The OEM controls stay in the dash and keep working, and the trim goes back on exactly as it came off.



That is the whole job. Nothing exotic, nothing permanent — and the difference a 10.2-inch screen makes to an Odyssey this age is worth the afternoon.
