Jeep Wrangler 2018-2023 Radio Upgrade

10.2-inch QLED 8-Core CPU Touch Screen Stereo

Wireless CarPlay & Android Auto



1  About Topdisplay

Topdisplay builds direct-fit touchscreen head units that bring a modern infotainment experience to specific vehicle models. Every kit is engineered for an exact model and year range, so the screen fits the dash and the harness matches the factory plugs.

For the Jeep Wrangler 2018-2023, Topdisplay pairs a large QLED display with an 8-core Android system and wireless smartphone integration - a clean, plug-and-play upgrade with no wire cutting.

Built for the Jeep Wrangler 2018-2023 - on and off the road.

2  The Product

This kit replaces the factory radio in the Jeep Wrangler 2018-2023 with a 10.2-inch QLED touch screen stereo, while keeping the vehicle's original functions fully intact.

  Highlights

●        8-core CPU keeps navigation, apps, and media fast and smooth

●        Wireless Apple CarPlay and Android Auto connect automatically

●        Google Play access for maps, music, and your favorite apps

●        On-screen climate control and vehicle settings, just like factory

●        Bluetooth hands-free calls and music streaming

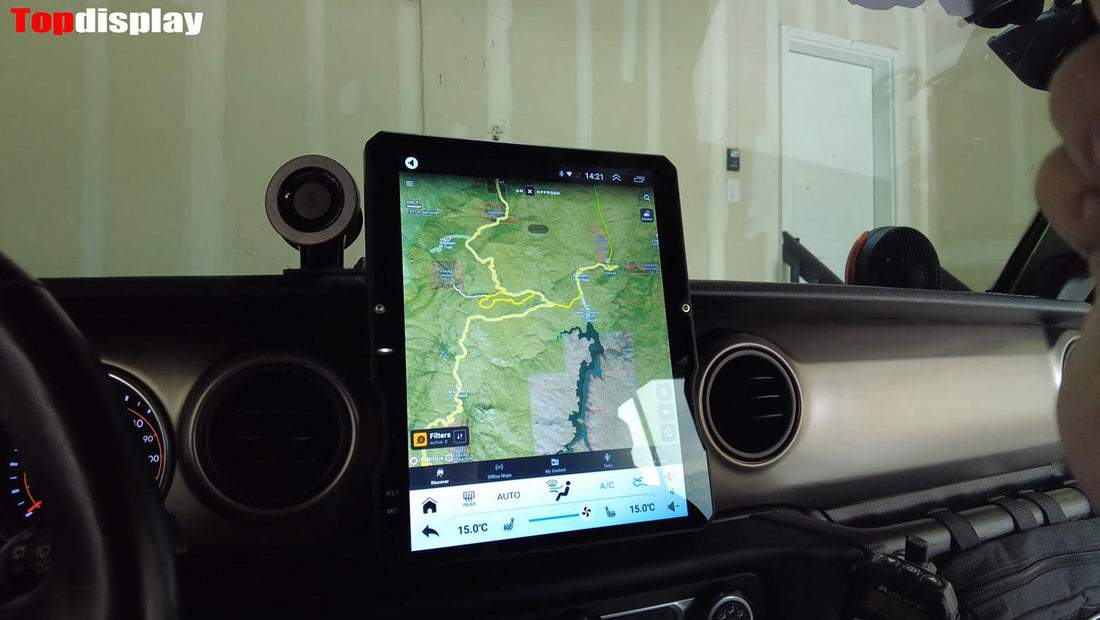

Navigation on the 10.2-inch QLED display.

3  Installation

Tools: a trim pry tool and a screwdriver.

Before you start: park on level ground, switch off the ignition, and disconnect the negative battery terminal.

Step 1 - Unbox and Check the Kit

Lay out the head unit, wiring harnesses, CAN bus decoder box, and accessories. Check everything against the packing list.

Kit contents: head unit, vehicle-specific harnesses, GPS antenna, and manual.

Step 2 - Remove the Dash Trim Panel

Pry around the edges of the dash trim panel and pop it loose. It is held by clips only.

Prying loose the factory dash trim panel.

Step 3 - Unplug the Panel Connectors

Press the locking tabs, disconnect the plugs behind the panel, and set the panel aside.

Disconnecting the plugs behind the trim panel.

Step 4 - Remove the Factory Radio

Remove the mounting screws and slide the factory radio straight out.

Sliding the factory radio out of the dash.

Step 5 - Disconnect the Factory Plugs

Unplug every connector from the back of the old radio, including the large red main plug.

Factory connectors unplugged, including the main red plug.

Step 6 - Connect the Topdisplay Harness

Plug the Topdisplay harness and CAN bus decoder box into the factory connectors. All plugs are keyed - no cutting or splicing.

Plugging the Topdisplay harness and CAN bus box into the factory connectors.

Step 7 - Connect, Mount, and Test

Connect all harnesses and antenna leads to the new unit, seat it in the dash, and refit the trim panel. Start the vehicle and check the touch screen, wireless CarPlay / Android Auto, radio, climate controls, and steering wheel controls.

Connecting the harnesses to the back of the new head unit.

Installation complete - the 10.2-inch QLED screen up and running.

Questions during installation? Contact the Topdisplay support team
