Give Your Tundra a 10.2" Glow-Up

10.2" QLED · 8-Core CPU · Touchscreen Stereo · Wireless CarPlay & Android Auto · Keeps OEM Controls

Why This Swap Is Worth an Afternoon

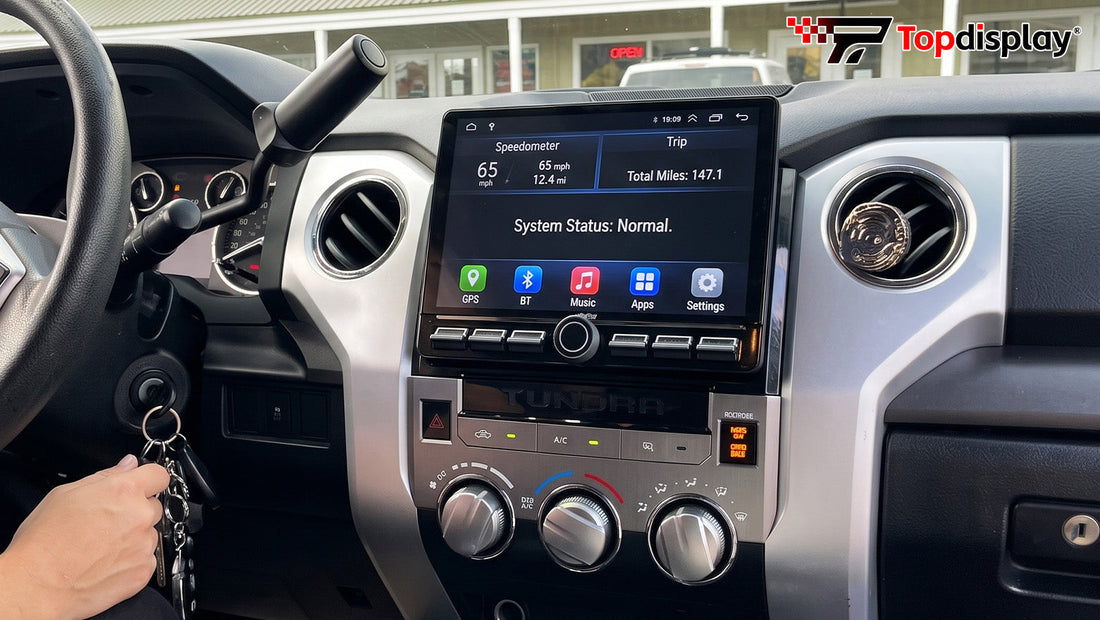

The finished look — a factory-clean 10.2" QLED screen locked into the 2014–2021 Tundra dash.

The 2014–2021 Tundra is a great truck, but its stock radio feels like it belongs to a previous decade. This Topdisplay upgrade trades it for a 10.2-inch QLED touchscreen with an 8-core CPU, wireless CarPlay and Android Auto — and it keeps every OEM control you already love. No cutting, no splicing of factory wires, no losing your steering-wheel buttons.

The whole thing is a plug-and-play swap you can finish in under an hour. Here are the moves that actually matter, straight from the install video.

The Upgrade at a Glance

Item	Details
Vehicle	Toyota Tundra (2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021)
New head unit	Topdisplay 10.2-inch QLED touch screen stereo
Processor	8-core CPU — fast menus, smooth response
CarPlay / Android Auto	Fully wireless, both platforms
Original radio	Factory unit + A/C control panel removed during install
OEM controls	Fully preserved — original connectors plug straight in
Wiring	Plug-and-play harness, no cutting or splicing

Step 1 — Pop the A/C Control Panel

First unit to come out is the climate-control panel above the radio. Work a screwdriver in to release it, then pull the whole panel module free. It's held by straightforward clips — gentle and steady wins here.

Reaching the screws behind the radio area after the A/C panel is freed.

Step 2 — Unbolt and Pull the Factory Radio

With the panel out of the way, use a trim tool for the vent surround and a Phillips screwdriver for the mounting screws, then ease the stock unit forward and out. Treat the connectors gently — you'll be plugging right back into this same space.

Working the factory radio loose — Phillips driver and trim tool get it out cleanly.

Step 3 — Unplug Everything and Clear the Slot

Disconnect every harness on the back of the stock unit and lift it fully out, including the plastic panel frame below. Each plug comes off one-by-one and the empty cavity opens up — clean, clipped back, ready for the new screen.

The factory radio pulled clear and ready to retire.

Step 4 — Meet Your New 10.2" Screen

Before it goes anywhere near the dash, fire the Topdisplay unit up on the bench — tap through the home screen and into system settings. It's a smart preview: if the screen and settings feel right here, they'll feel right once installed. (Spot the 8-core CPU doing its thing in the snappy navigation.)

Bench preview — browsing system settings on the new unit before install.

Step 5 — Align and Seat the Head Unit

Grab the new screen by the edges and line it up with the dash opening. Slide it into the slot at a slight angle, then press it flat into place — the first moment the 10.2-inch QLED panel actually takes over the cabin look.

Lining the new unit up with the dash cavity before seating it.

Step 6 — Plug In the Harness, Mount the Box, Done

Final stretch: click the factory connectors into the new harness — yellow, red, white and orange plugs going home one at a time — then fit the small black accessory box that sits under the screen. Every connector is keyed, so it only goes one way. Re-fit the trim, fire it up, and pair your phone over wireless CarPlay or Android Auto.

Mounting the accessory box below the screen before final trim re-fit.

The Bottom Line

Install time	About 30–45 minutes at a relaxed pace.
Difficulty	Easy to moderate — a solid 2.5/5. The A/C panel removal is the only slightly fiddly bit.
Best for	2014–2021 Tundra owners who want a modern big screen, wireless phone mirroring and kept factory controls.
After the upgrade	A crisp 10.2" QLED with an 8-core CPU, lag-free wireless CarPlay & Android Auto, and OEM controls that never left.

Questions Everyone Asks

Q: Will this damage my truck?

A: No. It's a true plug-and-play swap — the new harness matches the original connectors and no wire is cut or spliced. You can return to the factory radio anytime you like.

Q: Do I need professional tools?

A: Not really. A Phillips screwdriver and a trim tool cover the whole job. No specialty gear, no soldering.

Q: Is the install actually hard?

A: No. The only patience-testing part is popping the A/C panel and tucking cables behind the screen.

Q: Do I keep the factory functions?

A: Yes. Everything plugs straight into the original wiring, so the OEM controls and vehicle settings stay fully functional after the upgrade.

Note: This guide was written from the official Topdisplay install video for the 2014–2021 Toyota Tundra. Follow the on-screen steps of your own video and check fitment for your exact trim level.

(The content is for reference only.)
