Keep Track of Your Tire Pressure with the TM2 Tire Pressure Monitoring System

Make tire checks easier before and during your next trip. The TM2 Tire Pressure Monitoring System pairs a color LCD monitor with four external sensors to help you keep an eye on tire pressure and temperature. With solar charging, automatic backlight adjustment, and alerts for abnormal tire conditions, it brings essential tire information into view while you travel.

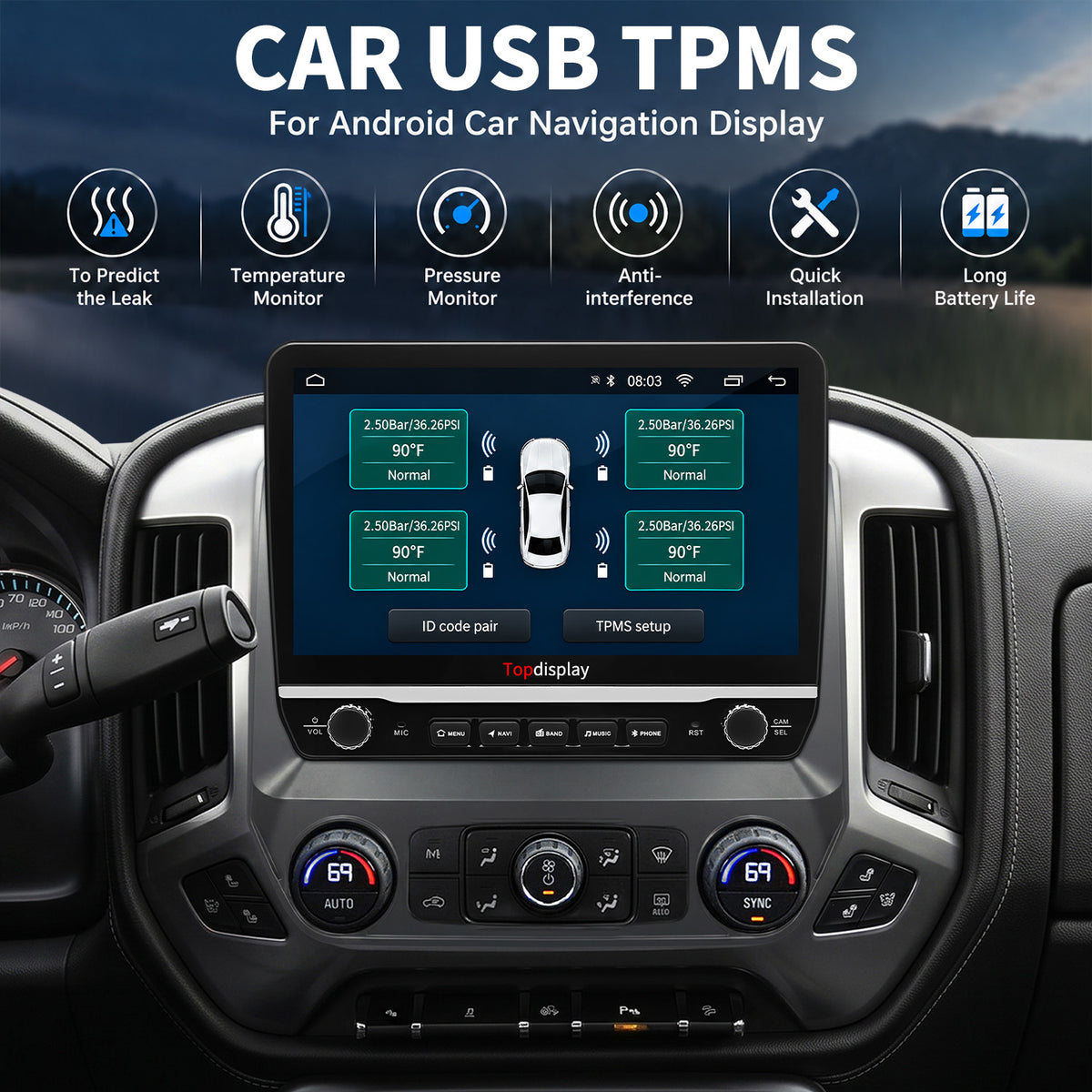

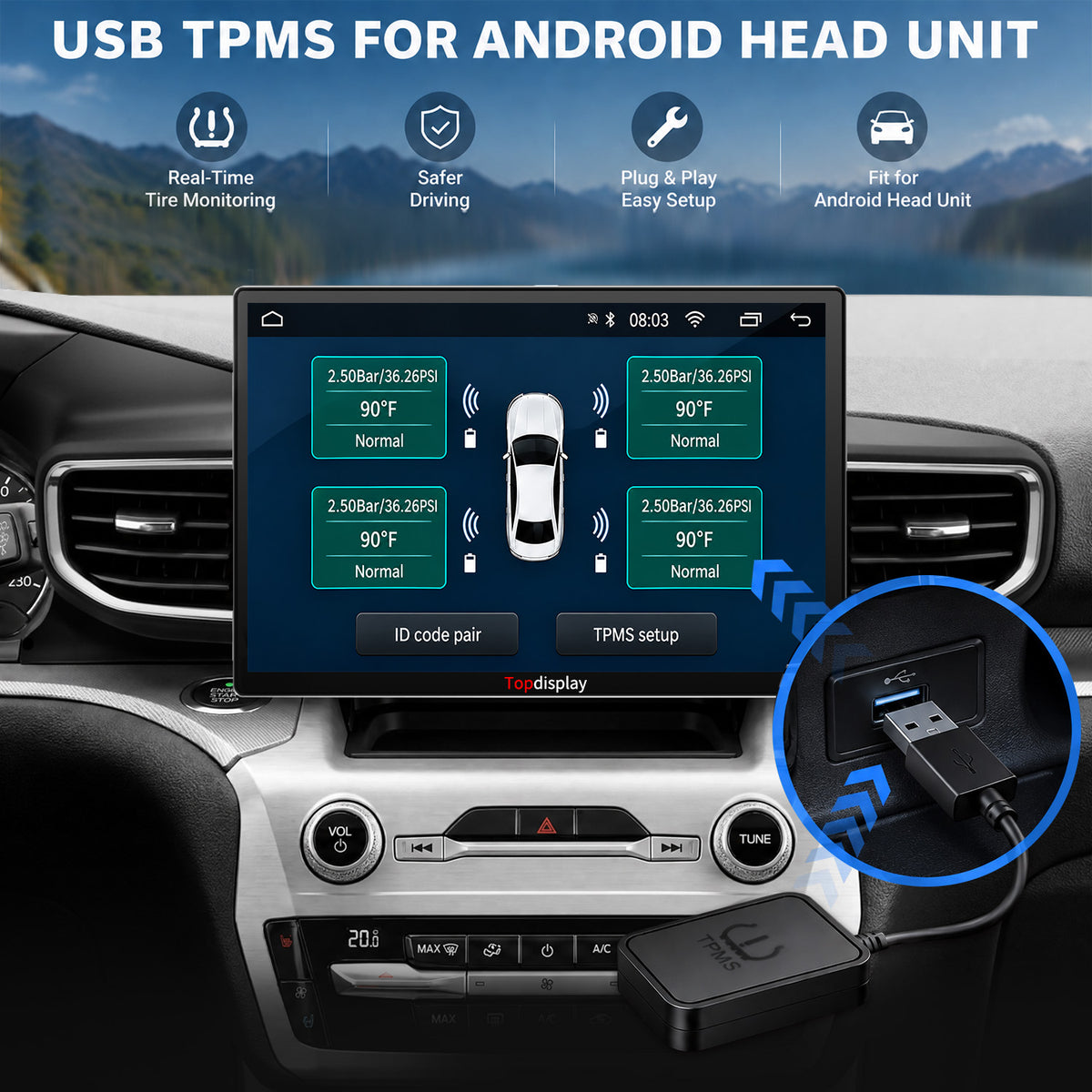

View Tire Pressure via the Built-in App in Your Head Unit: View tire pressure information directly through the built-in TPMS app on a compatible head unit, bringing factory-style tire pressure monitoring back to your dashboard. Check tire pressure on your car stereo’s screen for a more integrated, original-equipment-style experience. This functionality requires a compatible head unit with the built-in TPMS app and appropriate setup.

Key Features

• Six Tire Monitoring Alerts: Receive alerts for rapid air leaks, high pressure, low pressure, high temperature, low sensor battery, and sensor signal loss. After pairing, the system uses the current tire pressure as its reference, with alarm thresholds of +25% and -15% of the reference pressure.

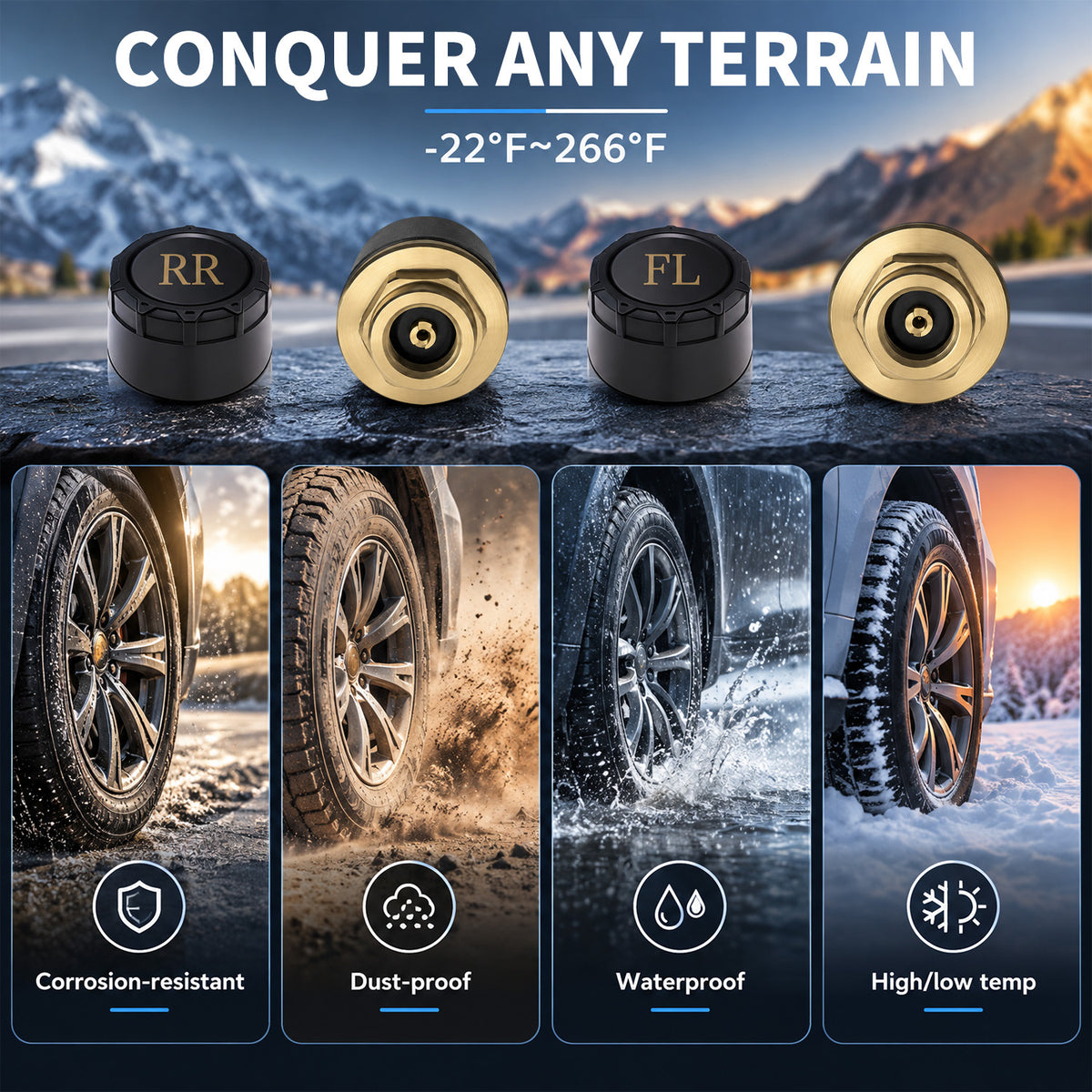

• Four Pre-Paired External Sensors: The included sensors are labeled and factory-paired with the monitor for straightforward setup. Their compact, lightweight design features IP67 waterproof protection.
• Low-Power Sensor Design: Each sensor uses a CR1632 battery, with stated battery operation of up to six months and a stated sensor lifespan of up to two years. Actual performance depends on usage and operating conditions.
• Solar and USB Charging: Solar charging helps power the monitor during daylight. USB charging is also supported when sunlight is limited; charging from a vehicle cigarette lighter socket requires an adapter that is not included.
• Color LCD with Automatic Backlight: The display automatically adjusts its backlight to suit changing light conditions, helping you read tire information during daytime and nighttime driving.
• 0–87 PSI Monitoring Range: Monitor tire pressure across a 0–87 PSI range, with stated pressure accuracy of approximately ±3 PSI. The system operates at 433.92 MHz.
• Expandable Monitoring for Up to 10 Tires: A single TM2 system supports monitoring up to 10 tires, with the display switchable between the towing vehicle and trailer. This set includes four sensors; additional sensors are required to monitor additional tires.

Why Choose the TM2 Tire Pressure Monitoring System?

• Useful Tire Information at a Glance: View pressure and temperature information without checking each tire manually during every stop.

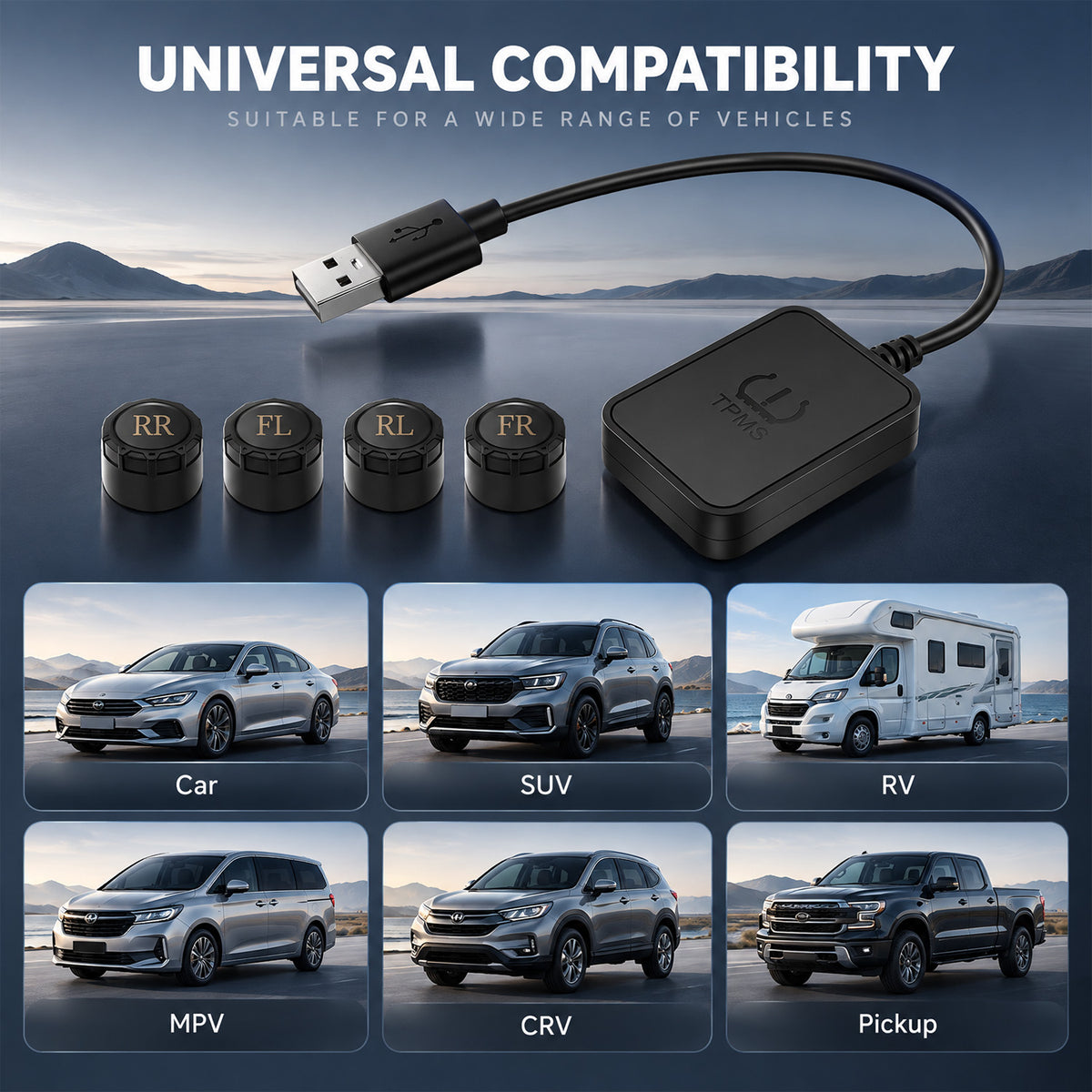

• Flexible Vehicle Applications: Suitable for sedans, SUVs, MPVs, pickup trucks, RVs, and travel trailers whose required tire pressures fall within the system’s 0–87 PSI monitoring range.

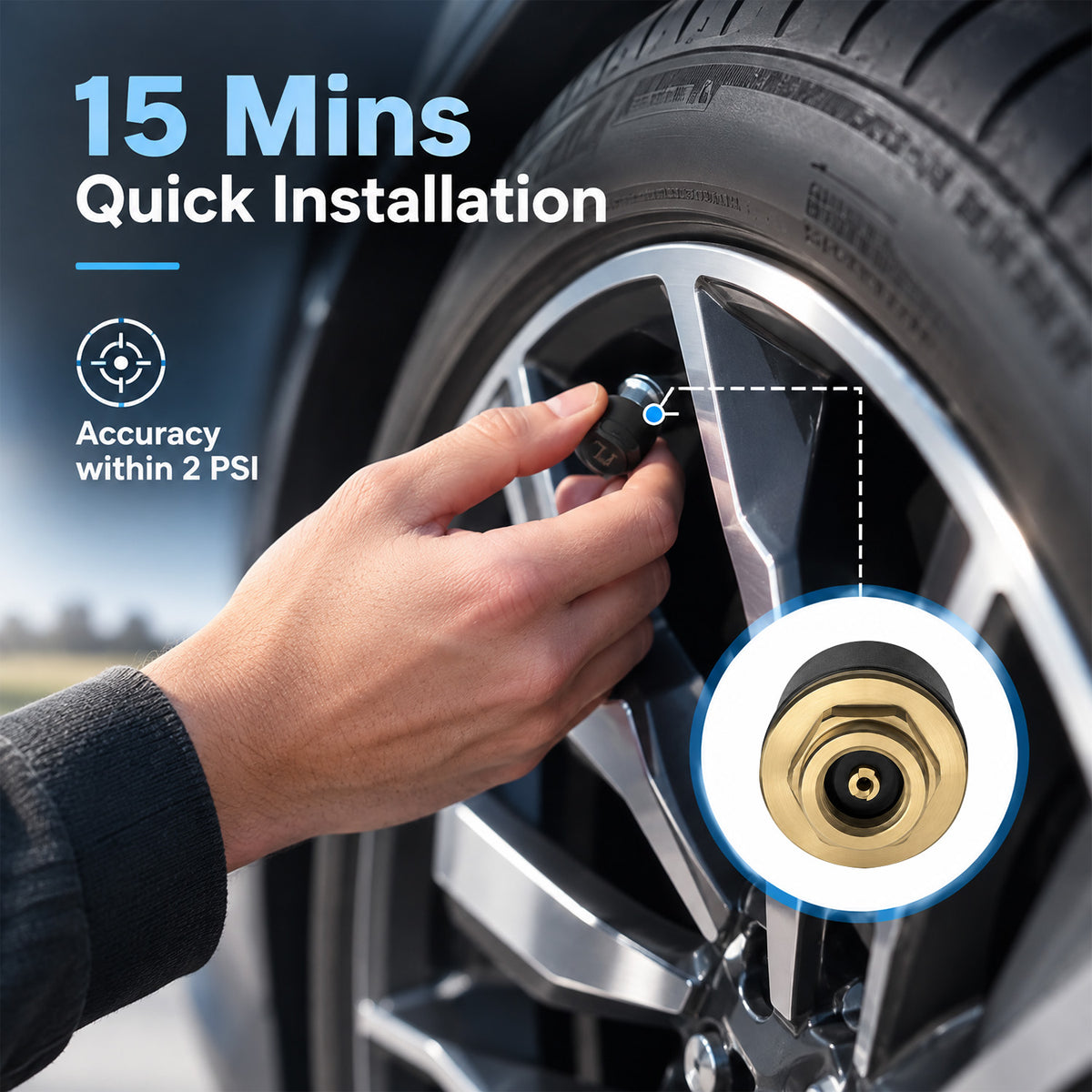

• Simple Initial Setup: Factory-paired, position-labeled sensors help simplify installation, while multiple charging options give you flexibility on the road.

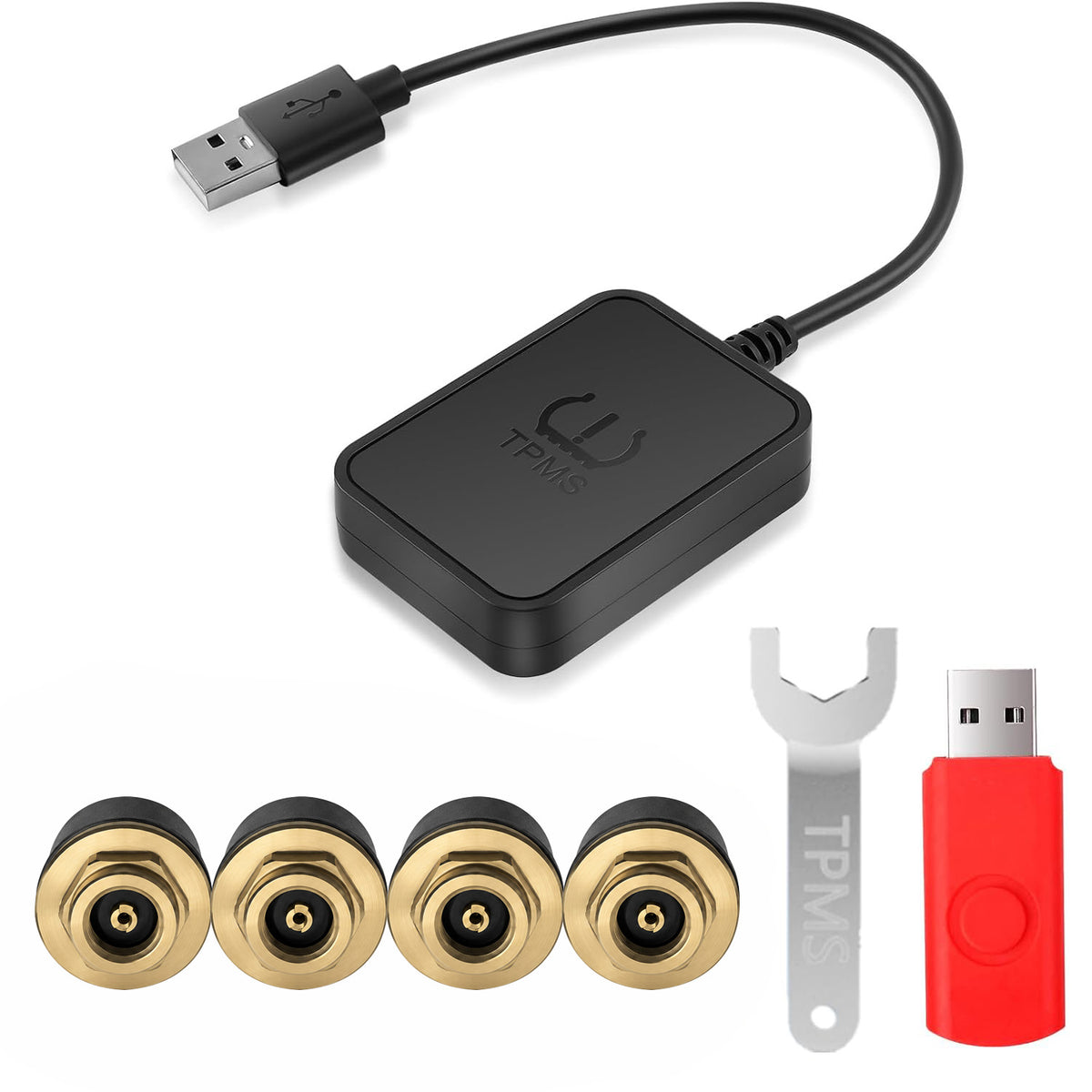

Included in This Set

• TM2 tire pressure monitoring display
• Four external tire pressure sensors, factory-paired and position-labeled

Installation & Compatibility Notes

• Metal valve stems are recommended for sensor stability and safety.
• For a towing vehicle and trailer combination with a total length of 36 feet or longer, a Tymate repeater is strongly recommended. The repeater is sold separately.
• Check your vehicle’s recommended tire pressures before choosing this system. Do not use it for applications requiring pressure monitoring above 87 PSI.
• This monitoring system does not replace routine tire inspections or proper tire maintenance.

Bring clearer tire information to your next journey with the TM2 four-sensor tire pressure monitoring system.
